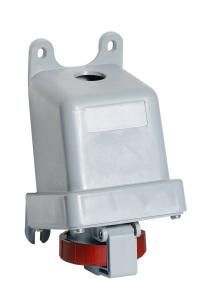

ABB Stotz-Kontakt 232RS9W, surface-mounted wall socket, 32 A 9h, IP67, 2P+E, 2CMA167173R1000

In stock
SKU: 202715
€117.12
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:32 A
Number of poles:3
Protection class (IP):IP67
Identification colour:red
Connection technology:screw terminal
Design:surface-mounted
Voltage according to EN 60309-2:380-415 V (50+60 Hz) red
Time setting:9 h
Material:plastic
Mounting type:External mounting
Military version:no
Insulated installation:yes
UL/CSA current rating (if UL version required):30 A
RAL number:7001
Cable entry:other

Characteristics

HAB232RS9W
ManufacturerABB Stotz-Kontakt
HAN2CMA167173R1000
GTIN7392696671736
Connection technologyScrew terminal
VersionSurface-mounted
Mounting typeExternal fastening
IEC current32 A
Insulated installationYes
Cable entryOther
Identification colorRed
Military versionNo
Number of poles3
RAL number7001
IP protection)IP67
Voltage according to EN 60309-2380-415 V (50+60 Hz) red
UL/CSA current rating (if UL version required)30A
Time position9 hrs
MaterialPlastic
ABB Stotz-Kontakt 232RS9W, surface-mounted wall socket, 32 A 9h, IP67, 2P+E, 2CMA167173R1000
