Catalog

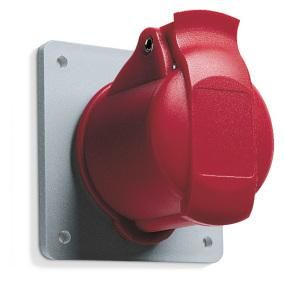

ABB Stotz-Kontakt 363RU5, panel-mounted socket, 63 A, IP44 5h, standard flange, 2CMA167518R1000

In stock
SKU: 202764
€141.52
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:63 A
UL/CSA current (if UL version required):63 A
Number of poles:4
Connection technology:screw terminal
Plug direction:straight
Voltage according to EN 60309-2:600-690 V (50+60 Hz) black
Time setting:5 h
Identification color:black
Protection class (IP):IP44
Material:Plastic
Military version:no
Hole spacing horizontal:61 mm
Hole spacing vertical:61 mm
Flange dimension horizontal:104 mm
Flange dimension vertical:104 mm
RAL number:7001
Rated voltage:600 to 690 V
Rated frequency:50 to 60 Hz

Characteristics

Rated frequency50 to 60 Hz
HAB363RU5
ManufacturerABB Stotz-Kontakt
HAN2CMA167518R1000
GTIN7392696675185
Connection technologyScrew terminal
Rated voltage600 to 690 V
IEC current63 A
Identification colorBlack
Military versionNo
Number of poles4
RAL number7001
IP protection)IP44
Voltage according to EN 60309-2600-690 V (50+60 Hz) black
Plug directionStraight
UL/CSA current rating (if UL version required)63 A
Time position5 hours
MaterialPlastic
ABB Stotz-Kontakt 363RU5, panel-mounted socket, 63 A, IP44 5h, standard flange, 2CMA167518R1000
ABB Stotz-Kontakt 363RU5, panel-mounted socket, 63 A, IP44 5h, standard flange, 2CMA167518R1000
€141.52
Into a basketIn the basketGo
