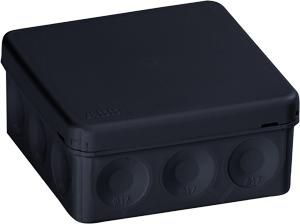

ABB Stotz-Kontakt AP9M cable junction box IP 55 86mm black surface mounting 25mm 400V

In stock
SKU: 203805
€2.68
Into a basketIn the basketGo

Overview

ABB's connection/junction boxes are made from a two-component system. They have ten membrane cable entries on the side that are easy to pierce and two more on the underside for cables up to 17 mm thick. The membrane reliably seals the cable entries. The boxes are securely closed with a snap-in lid. To open them, a screwdriver is inserted into the opening slots. Screws are not required. The installation temperature is -15 to +60 °C. Advantages: 12 self-sealing cable entries, extremely stable housing (PP), permanently elastic membrane entry (SEBS), optimal price/performance ratio, largest possible connection space, protection class IP55, certified according to EN60670-21:2007 and EN60670-22:2006, UV-resistant and halogen-free, glow wire test according to IEC 659-2-11.

PropertyValue
Width:86 mm
Length:86 mm
Depth:39 mm
Color:black
Protection class (IP):IP65
Number of entries:14
Halogen-free:yes
Equipment:without
Mounting type:universal
Material:plastic
Cover fastening:snap-on
Sealable:no
Can be arranged in rows:no
Shape:square
Max. Conductor cross-section:2.5 mm²
Type of housing feedthrough:Sealing membrane
For Ex-Zone Gas:without
Functional integrity:without
Explosion-tested version:no
Potting compound included:no
Potable:no
For Ex-Zone Dust:without
Installation under water:no
Transparent cover:no
Installation in Soil:no
Surface:untreated
For pipe diameter:other
With shielding:no
Rated insulation voltage Ui:500 V
Insertion from the rear:yes
Weatherproof:yes
Cover design:blind cover
Operating temperature:-25 to 60 °C
Protection class (NEMA):other

Characteristics

Explosion-tested versionNo
HABAP9M
ManufacturerABB Stotz-Kontakt
HAN2TKA140013G1
GTIN6418677329906
Cover designBlind cover
Rated insulation voltage Ui500V
Width86 mm
Operating temperature-25 to 60 °C
ColorBlack
ShapeSquare
Functional preservationWithout
Halogen freeYes
Length86 mm
Mounting typeUniversal
SurfaceUntreated
IP protection)IP65
Protection class (NEMA)Other
Depth39 mm
MaterialPlastic
