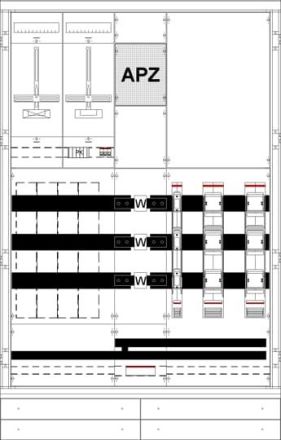

Measuring and transformer cabinet, pro Energy series, complete cabinet, with meter cross, mounting type: surface-mounted, for indoor use, with door, protection class I (earthed), protection class IP54, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, rated current In 1000 A, powder-coated, in RAL 7035, housing made of sheet steel, double door, door hinged right and left, dimensions in mm (H x W x D): 2113 x 1350 x 448, network system TN-CS 5-pole, number of reserve positions 1, number of transformer meter positions 1, including test terminal as per NB specifications, wired as per NB specifications, voltage path LS switch B6/25 kA 3-pole overvoltage category 3, load range: busbar system Cu busbars 80 x 10 mm 5-pole, transformer area transformer support with removable transformer tab 250 x 40 x 10 mm, Ritz: EKS 70-04, EKSO 74, MBS: EASK 41.4, EASK 41.5 (provided by NB), separation point after the transformer 2 fuse load strips NH3/630 A (M12), locking unit 12 RE, height 8, field width 5, cabinet depth 4, space units 720, plastic covers, sealable quick-release fastener, RAL 7035
| Property | Value |
| Number of meter spaces: | 1 |
| Number of fields: | 3 |
| Height: | 2113 mm |
| Width: | 1350 mm |
| Depth: | 448 mm |
| Protection class (IP): | IP54 |
| Lower connection compartment: | with busbar |
| Material: | Sheet steel |
| With mounting plate: | no |
| Mounting type: | Surface-mounted |
| Installation width: | 1350 mm |
| Installation height: | 2113 mm |
| Installation depth: | 448 mm |
