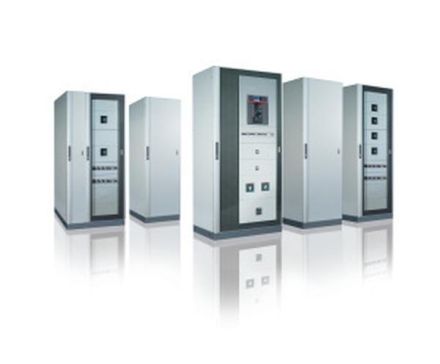

ABB Striebel & John P114T4 series control cabinet with rear panel, cover plate, door, 1-field wide, 14 grid, 1STQ001042M0000

ABB Striebel & John P114T4 series control cabinet with rear panel, cover plate, door, 1-field wide, 14 grid, 1STQ001042M0000

In stock

SKU: 470528

Price on request

€656.87

€0

Overview

The series switchgear cabinet system System pro E power offers empty housings for free expansion (IEC 62208), cabinets with a 185mm busbar system (IEC 61439 1-2) up to 2000A and a rear busbar system (IEC 61439 1-2) up to 6300A. System pro E power offers full compatibility with all ABB devices such as the modular circuit breakers Tmax and Emax.

Property	Value
Height:	2200 mm
Width:	350 mm
Depth:	400 mm
Inner depth:	400 mm
Protection class (IP):	other
Protection class:	II
Impact resistance:	IK10
Housing material:	Steel
RAL number:	7035
Mounting type:	Floor installation
Suitable for outdoor use:	no
Surface:	painted
Suitable for lightning protection:	no
Mounting option:	yes
With mounting plate:	no
Type of cover:	door
Type of door:	single
Cover design:	closed
Functional integrity:	without
Material thickness door/cover:	1.5 mm
With Lock:	yes
Rated current (In):	6300 A
Transparent cover/door:	no
Color:	gray
Protection class (NEMA):	other
