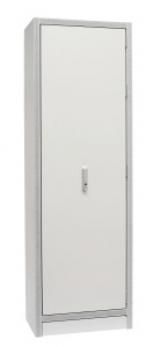

ABB Striebel & John 1/8SF303 stationary fire protection 90min., 2CPX043391R9999

In stock
SKU: 473491
€5,482.20
Into a basketIn the basketGo

Overview

Fire protection standing cabinet, SF series, empty cabinet, installation type: surface-mounted, for indoor use, with door, building material according to A2 - non-flammable, tested according to DIN 4102-1, fire resistance 90 min. tested according to DIN 4102-2, smoke-tight, cold smoke-tight, rated operating voltage Ue 400V AC 50/60 Hz, surface coated similar to RAL 7035, housing made of non-flammable material, single-leaf door, door made of non-flammable material, with swivel lever with half cylinder, door opening angle 180 degrees, door hinged on the right, cable entry at the top via cable bulkhead, below via cable bulkhead, prepared for expansion with CombiLine modules on EDF assembly frame

PropertyValue
Height:2048 mm
Width:398 mm
Depth:349 mm
Inner depth:240 mm
Protection rating (IP):IP44
Protection class:II
Impact resistance:other
RAL number:7035
Mounting type:Floor installation
Suitable for outdoor use:no
Surface:other
Suitable for lightning protection:no
Mounting option:no
With mounting plate:no
Number of modules:132
Number of openings for flange plates:2
Number of rows:11
Type of cover:without
Type of door:Single
Cover design:with cutout
Width in Division units:12
Functional integrity:E 90
Material thickness of housing:72 mm
Material thickness of door/cover:72 mm
With lock:yes
Transparent cover/door:no
Color:gray

Characteristics

HAB1/8SF303 Fire protection 90min
HAN2CPX043391R9999
GTIN4011617433910
Cultivation optionNo
Number of modules132
Number of rows11
Number of openings for flange plates2
Type of coverWithout
Type of doorSingles
Cover designWith cutout
Width398 mm
Width in pitch units12
ColorGray
Functional preservationE90
Suitable for outdoor useNo
Suitable for lightning protectionNo
Height2048 mm
Internal depth240 mm
Housing material thickness72 mm
Material thickness door/lid72 mm
With mounting plateNo
With lockYes
Mounting typeFloor installation
SurfaceOther
RAL number7035
Impact resistanceOther
IP protection)IP44
Protection classII
Depth349 mm
Transparent lid/doorNo
