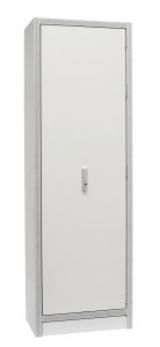

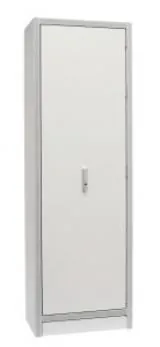

Fire protection standing cabinet, SF series, empty cabinet, installation type: surface-mounted, for indoor use, with door, building material according to A2 - non-flammable, tested according to DIN 4102-1, fire resistance 30 min. tested according to DIN 4102-2, smoke-tight, cold smoke-tight, rated operating voltage Ue 400V AC 50/60 Hz, surface coated similar to RAL 7035, housing made of non-flammable material, single-leaf door, door made of non-flammable material, with swivel lever with half cylinder, door opening angle 180 degrees, door hinged on the right, cable entry at the top via cable bulkhead, below via cable bulkhead, prepared for expansion with CombiLine modules on EDF assembly frame
| Property | Value |
| Height: | 2048 mm |
| Width: | 648 mm |
| Depth: | 349 mm |
| Inner depth: | 240 mm |
| Protection rating (IP): | IP44 |
| Protection class: | II |
| Impact resistance: | other |
| RAL number: | 7035 |
| Mounting type: | Floor installation |
| Suitable for outdoor use: | no |
| Surface: | other |
| Suitable for lightning protection: | no |
| Mounting option: | no |
| With mounting plate: | no |
| Number of modules: | 264 |
| Number of openings for flange plates: | 1 |
| Number of rows: | 11 |
| Type of cover: | without |
| Type of door: | Single |
| Cover design: | with cutout |
| Width in Division units: | 24 |
| Functional integrity: | E 30 |
| Material thickness of housing: | 72 mm |
| Material thickness of door/cover: | 72 mm |
| With lock: | yes |
| Transparent cover/door: | no |
| Color: | gray |
