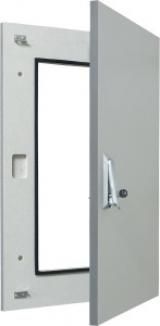

ABB Striebel & John 1/3VF11 front door fire protection 90 min, 2CPX043402R9999

In stock
SKU: 473502
€1,356.17
Into a basketIn the basketGo

Overview

Fire protection front door, VF series, for indoor use, with frame and door, building material according to A2 - non-flammable, tested according to DIN 4102-1, fire resistance 90 min. tested according to DIN 4102-2, smoke-tight, cold smoke-tight, surface coated similar to RAL 7035, frame and door made of non-flammable material, single-leaf door, with swivel lever with half cylinder, door opening angle 150 degrees, door hinge on the right, for installation in front of an existing flush-mounted distribution

PropertyValue
Version:Protective door
Version as a viewing door:no
Version as a door for isolating switch locking:no
Surface version:other
Height:1345 mm
Width:575 mm
Material:other
EMC version:no
Depth:71 mm
Protection class (IP):IP54

Characteristics

HAB1/3VF11 90min 1-wing
HAN2CPX043402R9999
GTIN4011617434023
VersionProtective door
Version as a viewing doorNo
Designed as a door for circuit breaker interlockNo
Surface finishOther
Width575 mm
EMC versionNo
Height1345 mm
IP protection)IP54
Depth71 mm
MaterialOther
ABB Striebel & John 1/3VF11 front door fire protection 90 min, 2CPX043402R9999
ABB Striebel & John 1/3VF11 front door fire protection 90 min, 2CPX043402R9999
€1,356.17
Into a basketIn the basketGo
