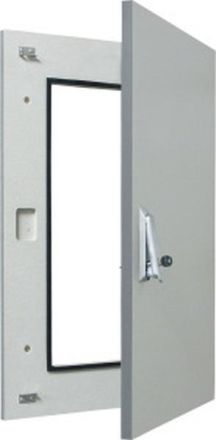

ABB Striebel & John 2/1VF10 front door fire protection 30 min. W795 /H1045 /D51 mm, 1-leaf, 2CPX041050R9999

In stock
SKU: 465281
€1,526.84
Into a basketIn the basketGo

Overview

Fire protection front door, VF series, for indoor use, with frame and door, protection class IP54, building material according to A2 - non-flammable, tested according to DIN 4102-1, smoke-tight, fire resistance 30 min tested according to DIN 4102-2, fire load insulation 30 min based on DIN 4102-11, functional integrity 30 min based on DIN 4102-12, surface coated, in RAL SIMILAR7035, single-leaf door, door made of non-flammable material, with swivel lever with half cylinder, door opening angle 180 degrees, door hinge on the right, dimensions in mm (H x W x D): 1045 x 795 x 51, frame dimensions in mm (H x W x D): 1045 x 795 x 22, locking unit 5 RE, construction height 1, field width 2, space units 120

PropertyValue
Version:Protective door
Version as a viewing door:no
Version as a door for isolating switch locking:no
Surface version:other
Color:grey
Height:1045 mm
Width:795 mm
Material:other
EMC version:no
Depth:51 mm
Protection class (IP):IP54

Characteristics

HAB2/1VF10 30min. 1-wing
HAN2CPX041050R9999
GTIN4011617410508
VersionProtective door
Version as a viewing doorNo
Designed as a door for circuit breaker interlockNo
Surface finishOther
Width795 mm
EMC versionNo
ColorGray
Height1045 mm
IP protection)IP54
Depth51 mm
MaterialOther
ABB Striebel & John 2/1VF10 front door fire protection 30 min. W795 /H1045 /D51 mm, 1-leaf, 2CPX041050R9999
ABB Striebel & John 2/1VF10 front door fire protection 30 min. W795 /H1045 /D51 mm, 1-leaf, 2CPX041050R9999
€1,526.84
Into a basketIn the basketGo
