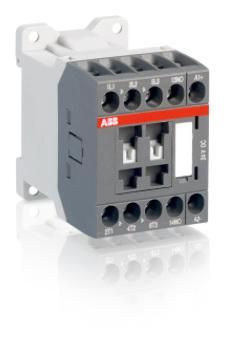

ABB Striebel & John ASL16-30-10-86 110VDC contactor, 1SBL123001R8610

In stock
SKU: 453718
€82.16
Into a basketIn the basketGo

Overview

Contactors AS/ASL 09 to AS/ASL 16 from 4 to 7.5 kW AC-3 (400 V) represent the very compact series with AC or DC control. They switch power circuits with motors, slightly inductive or non-inductive loads and have 3 main make contacts and 1 or 5 auxiliary contacts. Attachable accessories include quenching elements that can be plugged in from the side and 1-pole auxiliary switches that can be plugged in from the front. All auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timers for delaying on and off, wiring aids and locking elements, etc., complete the range.

PropertyValue
Rated control supply voltage Us at DC:110
Voltage type for actuation:DC
Rated operating current Ie at AC-1, 400 V:24
Rated operating current Ie at AC-3, 400 V:15.5
Rated operating power at AC-3, 400 V:7.5
Rated operating power NEMA:7.457
Suitable for series installation:no
Number of auxiliary contacts as normally open contacts:1
Connection type main circuit:Screw connection
Number of normally open contacts as main contacts:3

Characteristics

HABASL16-30-10-86 110VDC
HAN1SBL123001R8610
GTIN3471523059665
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open1
Number of normally open contacts as main contacts3
Rated operating power NEMA7.457
Rated operational power at AC-3, 400 V7.5
Rated operational current Ie at AC-1, 400 V24
Rated operational current Ie at AC-3, 400 V15.5
Rated control supply voltage Us at DC110
Suitable for series installationNo
Voltage type for actuationDC
ABB Striebel & John ASL16-30-10-86 110VDC contactor, 1SBL123001R8610
ABB Striebel & John ASL16-30-10-86 110VDC contactor, 1SBL123001R8610
€82.16
Into a basketIn the basketGo
