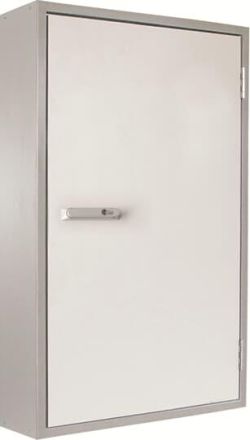

Fire protection wall cabinet, UF series, empty cabinet, installation type: flush-mounted, for indoor use, with door, protection class II (protectively insulated), protection type IP41, building material according to A2 - non-flammable, tested according to DIN 4102-1, smoke-tight, cold smoke-tight, fire resistance 90 min tested according to DIN 4102-2, fire load insulation 90 min based on DIN 4102-11, functional integrity 90 min based on DIN 4102-12, rated operating voltage Ue 400V AC 50/60 Hz, surface-coated, in RAL AEHNLICH7035, housing made of non-flammable material, single-leaf door, door made of non-flammable material, with swivel lever with half cylinder, door opening angle 180 degrees, door hinge on the right, cable entry at the top via cable bulkhead, at the bottom via cable bulkhead, dimensions in mm (H x W x D): 982 x 332 x 205, locking unit 6 RE, height 2, field width 1, space units 72, prepared for expansion with distribution fields, combi sets, CombiLine modules on EDF assembly frame
| Property | Value |
| Height: | 982 mm |
| Width: | 332 mm |
| Depth: | 205 mm |
| Inner depth: | 118 mm |
| Protection rating (IP): | IP41 |
| Protection class: | II |
| Impact resistance: | other |
| RAL number: | 7035 |
| Mounting type: | Flush-mounted |
| Suitable for outdoor use: | no |
| Surface: | other |
| Suitable for lightning protection: | no |
| Mounting option: | no |
| With mounting plate: | no |
| Number of modules: | 72 |
| Number of openings for flange plates: | 1 |
| Number of rows: | 6 |
| Type of cover: | without |
| Type of door: | Single |
| Cover design: | with cutout |
| Width in Division units: | 12 |
| Functional integrity: | E 90 |
| With lock: | yes |
| Transparent lid/door: | no |
| Color: | gray |
