ABB Striebel & John MBR103 busbar module 60mm 3RE / 1FB, usable width of 165mm, 2CPX041830R9999

In stock
SKU: 466727
€129.18
Into a basketIn the basketGo

Overview

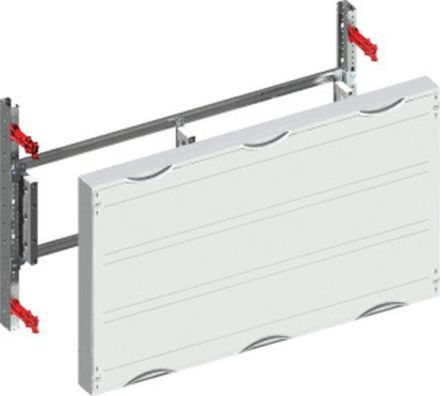

Interior fitting module, CombiLine, kit unassembled, for busbar system 60 mm horizontal, locking unit 3 RE = 450 mm, panel width 1 = 250 mm, 36 space units, usable width of 165 mm, unequipped for the installation of D0 and NH fuse switch disconnectors or bus-mounting fuse bases D02, E27, E33, for 3-pole busbar system, busbar alignment: horizontal, with busbar holder ZX146, busbar center distance: 60 mm, for a maximum of 3 Cu bars, (busbars must be ordered separately), rated current In max. 630 A, plastic covers, 90 degree push-turn lock, RAL 7035, cover design: closed, can be used from a cabinet depth of 275 mm, WR mounting frame must be ordered separately

PropertyValue
Size:other
Rated current:630 A
Mounting type:busbar system
Number of poles:3
Switching neutral conductor:no
With cover:yes
Height:450 mm
Width:250 mm
Depth:260 mm

Characteristics

HABMBR103 busbar 60mm module
HAN2CPX041830R9999
GTIN4011617418306
SizeOther
Rated current630A
Width250 mm
Height450 mm
With coverYes
Switching neutral conductorNo
Mounting typeBusbar system
Number of poles3
Depth260 mm
ABB Striebel & John MBR103 busbar module 60mm 3RE / 1FB, usable width of 165mm, 2CPX041830R9999
ABB Striebel & John MBR103 busbar module 60mm 3RE / 1FB, usable width of 165mm, 2CPX041830R9999
€129.18
Into a basketIn the basketGo
