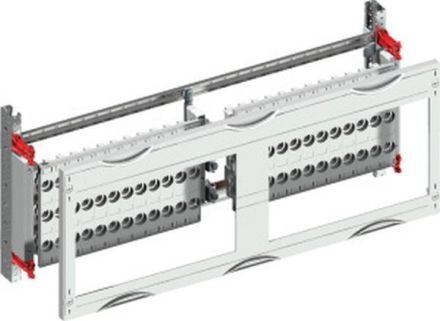

ABB Striebel & John MR302B busbar module 2RE / BH000, 3FB, 60mm horizontal, 2CPX041411R9999

In stock
SKU: 466648
€617.71
Into a basketIn the basketGo

Overview

Interior fitting module, CombiLine, installed in the cabinet, for busbar system 60 mm horizontal, locking unit 2 RE = 300 mm, field width 3 = 750 mm, 72 space units, equipped with 24 bus-mounting fuse bases D02, operating equipment make: ABB, Neozed / Diazed, for busbar system 3-pole, busbar alignment: horizontal, with busbar holder ZX146, busbar center distance: 60 mm, for a maximum of 3 copper bars, (busbars must be ordered separately), rated current In max. 250 A, plastic covers, 90 degree push-turn lock, RAL 7035, cover design: with cutout, can be used from a cabinet depth of 225 mm, WR mounting frame must be ordered separately

PropertyValue
Switchable:no
Number of poles:3
Number of three-phase circuits 63 A:24
Mounting type rail system:horizontal
Mounting type of D-fuse base:busbar system
Fuses version:D02
Height:300 mm
Width:750 mm
Depth:225 mm
With cover:yes

Characteristics

HABMR302B 60mm
HAN2CPX041411R9999
GTIN4011617414117
Width750 mm
Height300 mm
With coverYes
Number of poles3
Depth225 mm
