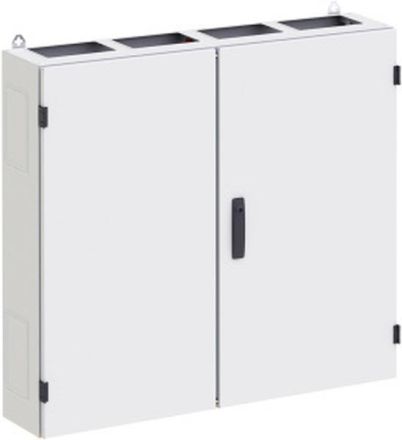

ABB Striebel & John TG405G TwinLine N 55 wall cabinet W1050/ H800 / D225 mm, 2CPX010008R9999

In stock
SKU: 447757
€457.07
Into a basketIn the basketGo

Overview

Wall cabinet, TwinLine series, empty cabinet, mounting type: surface-mounted, partially recessed, for indoor use, with door, protection class I (earthed), protection type IP55, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, DIN EN 61439-3,0660-600-3, IK code 08, powder-coated, in RAL 7035, housing made of sheet steel, double door, door made of sheet steel, with standard lock double bit 3 mm, door opening angle 180 degrees, door hinge right and left, rear panel made of sheet steel, cable entry cut out at the top via flange opening, pre-stamped at the bottom via flange opening, pre-stamped at the side via flange opening, dimensions in mm (H x W x D): 800 x 1050 x 225, locking unit 5 RE, Height 1, field width 4, space units 240, prepared for expansion with meter, distribution fields, combi sets, CombiLine modules or mounting plates on EDF/WR mounting frame

PropertyValue
Height:800 mm
Width:1050 mm
Depth:225 mm
Installation depth:170 mm
Inner depth:222 mm
Protection type (IP):IP55
Protection class:I
Impact resistance:IK08
Housing material:Sheet steel/plastic
RAL number:7035
Mounting type:Surface-mounted
Suitable for outdoor use:no
Surface:powder-coated
Suitable for lightning protection:no
Mounting option:yes
With mounting plate:no
Number of cable entries:208
Number of modules:240
Number of openings for flange plates:4
Number of rows:5
Type of cover:without
Type of door:Double
Cover design:with cutout
Width in division units:48
Functional integrity:without
Material thickness of housing:1 mm
Material thickness of door/cover:1.5 mm
With lock:yes
Transparent cover/door:no
Color:gray

Characteristics

HABTG405G SKI IP55 TwinLine
HAN2CPX010008R9999
GTIN4011617100089
Cultivation optionYes
Number of cable entries208
Number of modules240
Number of rows5
Number of openings for flange plates4
Type of coverWithout
Type of doorDouble
Cover designWith cutout
Width1050 mm
Width in pitch units48
Installation depth170 mm
ColorGray
Functional preservationWithout
Suitable for outdoor useNo
Suitable for lightning protectionNo
Height800 mm
Internal depth222 mm
Housing material thickness1 mm
Material thickness door/lid1.5 mm
With mounting plateNo
With lockYes
Mounting typeSurface-mounted
SurfacePowder coated
RAL number7035
Impact resistanceIK08
IP protection)IP55
Protection classI
Depth225 mm
Transparent lid/doorNo
Housing materialSheet steel/plastic
