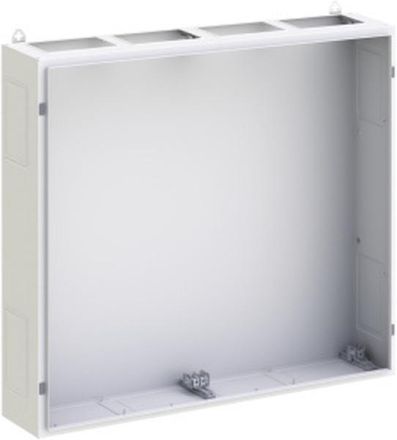

Wall cabinet, TwinLine series, empty cabinet, mounting type: surface-mounted, partially recessed, for indoor use, without door, protection class I (earthed), protection type IP30, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, DIN EN 61439-3,0660-600-3, IK code 08, powder-coated, in RAL 7035, housing made of sheet steel, without door, rear panel made of sheet steel, cable entry cut out at the top via flange opening, pre-punched at the bottom via flange opening, pre-punched at the side via flange opening, dimensions in mm (H x W x D): 950 x 1300 x 275, locking unit 6 RE, height 2, field width 5, space units 360, prepared for expansion with meter and distribution panels, Combi sets, CombiLine modules or mounting plates on EDF/WR mounting frame
| Property | Value |
| Height: | 950 mm |
| Width: | 1300 mm |
| Depth: | 275 mm |
| Installation depth: | 222.5 mm |
| Inner depth: | 272 mm |
| Protection type (IP): | IP30 |
| Protection class: | I |
| Impact resistance: | IK08 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 260 |
| Number of modules: | 360 |
| Number of openings for flange plates: | 5 |
| Number of rows: | 6 |
| Type of cover: | without |
| Type of door: | without |
| Cover design: | with cutout |
| Width in division units: | 60 |
| Functional integrity: | without |
| Material thickness of housing: | 1 mm |
| Material thickness of door/cover: | 1 mm |
| With lock: | no |
| Transparent cover/door: | no |
| Color: | gray |
