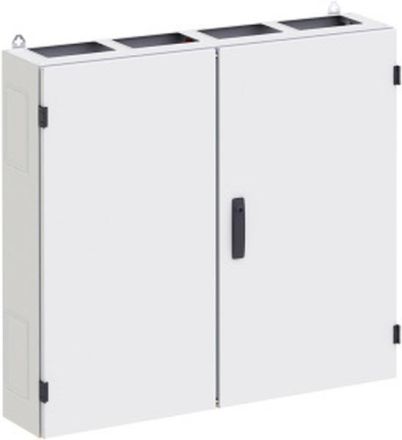

Wall cabinet, TwinLine series, empty cabinet, mounting type: surface-mounted, partially recessed, for indoor use, with door, protection class I (earthed), protection type IP55, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, DIN EN 61439-3,0660-600-3, IK code 08, powder-coated, in RAL 7035, housing made of sheet steel, double door, door made of sheet steel, with standard lock double bit 3 mm, door opening angle 180 degrees, door hinge right and left, rear panel made of sheet steel, cable entry cut out at the top via flange opening, pre-stamped at the bottom via flange opening, pre-stamped at the side via flange opening, dimensions in mm (H x W x D): 1400 x 1050 x 350, locking unit 9 RE, height 5, field width 4, space units 432, prepared for expansion with meter, distribution fields, combination sets, CombiLine modules or mounting plates on EDF/WR mounting frame
| Property | Value |
| Height: | 1400 mm |
| Width: | 1050 mm |
| Depth: | 350 mm |
| Installation depth: | 299 mm |
| Inner depth: | 347 mm |
| Protection type (IP): | IP55 |
| Protection class: | I |
| Impact resistance: | IK08 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 208 |
| Number of modules: | 432 |
| Number of openings for flange plates: | 4 |
| Number of rows: | 9 |
| Type of cover: | without |
| Type of door: | Double |
| Cover design: | with cutout |
| Width in division units: | 48 |
| Functional integrity: | without |
| Material thickness of housing: | 1 mm |
| Material thickness of door/cover: | 1.5 mm |
| With lock: | yes |
| Transparent cover/door: | no |
| Color: | gray |
