ABB Thomas & Betts SPB50/10M protective hose, 7TCA296040R0161

In stock

SKU: 458293

Price on request

€634.97

€0

Overview

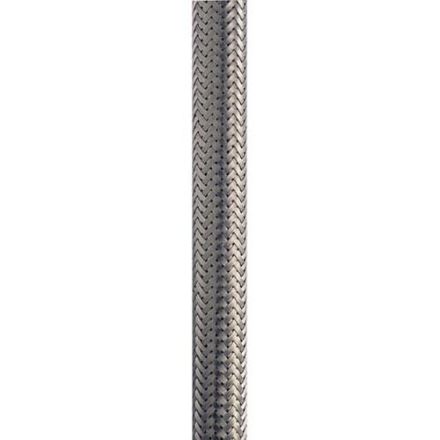

Adaptaflex cable protection type SPB flexible braided PVC IP54 (roll) 10m steel

Property	Value
Nominal diameter:	50 mm
Surface:	other
Sheathing material 1st layer:	Polyvinyl chloride (PVC)
Sheathing material 2nd layer (outer):	Steel wire, galvanized
Approval according to DIN EN 61386-23:	yes
Nominal size in inches:	1 1/2 inches
Inner diameter:	48.4 mm
Outer diameter:	56 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	700 °C
Tensile strength:	1000 N
Bending radius, static:	90 mm
Weight:	0.9 kg/m
Color:	metallic
Hanging load:	850 N
Electrical properties:	with conductive and insulating properties
Flame-spreading:	no
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	steel
Protection class (IP):	IP54
Bending behavior:	flexible
