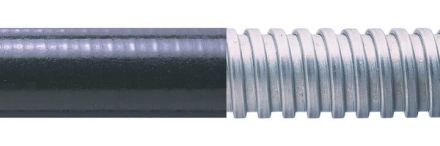

ABB Thomas & Betts SPL25/GR/10M steel protection hose, 7TCA296030R0201

In stock

SKU: 458455

Price on request

€209.65

€0

Overview

Adaptaflex cable protection type SPL flexible liquid resistant PVC IP67 10m grey steel

Property	Value
Nominal diameter:	25 mm
Surface:	other
Sheathing material 1st layer:	Polyvinyl chloride (PVC)
Sheathing material 2nd layer (outer):	without sheathing
Approval according to DIN EN 61386-23:	yes
Nominal size in inches:	3/4 inch
Inner diameter:	21 mm
Outer diameter:	26.4 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	1050 °C
Tensile strength:	1000 N
Bending radius, static:	110 mm
Weight:	0.4 kg/m
Color:	grey
Hanging load:	850 N
Electrical properties:	with insulating properties
Flame-spreading:	no
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	steel
Protection class (IP):	IP68
Bending behavior:	flexible
