ABB Thomas & Betts SPLHCB20/25M protective hose, 7TCA296100R0170

In stock

SKU: 464503

Price on request

€1,036.89

€0

Overview

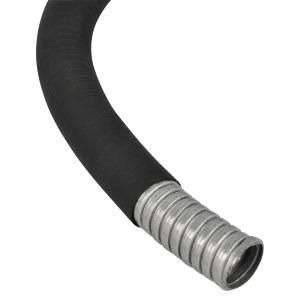

Adaptaflex cable protection type SPLHCB flexible braided liquid resistant TPR (roll) 25m stainless steel

Property	Value
Nominal diameter:	20 mm
Surface:	other
Sheathing material 1st layer:	other
Sheathing material 2nd layer (outer):	stainless steel wire
Approval according to DIN EN 61386-23:	yes
Nominal size in inches:	1/2 inch
Inner diameter:	15.9 mm
Outer diameter:	21.1 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	1350 °C
Tensile strength:	2500 N
Bending radius, static:	95 mm
Weight:	0.4 kg/m
Color:	black
Hanging load:	850 N
Electrical properties:	with conductive properties
Flame-spreading:	no
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	steel
Protection class (IP):	IP68
Bending behavior:	flexible
