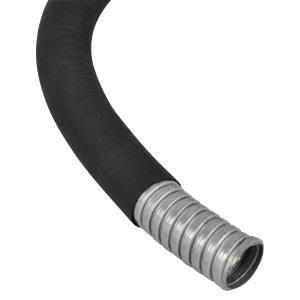

ABB Thomas & Betts SPLHCB25/25M protective hose, 7TCA296100R0171

In stock
SKU: 464504
€1,379.46
Into a basketIn the basketGo

Overview

Adaptaflex cable protection type SPLHCB flexible braided liquid resistant TPR (roll) 25m stainless steel

PropertyValue
Nominal diameter:25 mm
Surface:other
Sheathing material 1st layer:other
Sheathing material 2nd layer (outer):stainless steel wire
Approval according to DIN EN 61386-23:yes
Nominal size in inches:3/4 inch
Inner diameter:21 mm
Outer diameter:26.4 mm
Seal:without seal
Compressive strength:1250 N
Operating temperature:1350 °C
Tensile strength:2500 N
Bending radius, static:115 mm
Weight:0.5 kg/m
Color:black
Hanging load:850 N
Electrical properties:with conductive properties
Flame-spreading:no
Use in Ex areas:no
Approval according to BWB:no
Approval according to VDE-EMV/emc:no
Approval according to FI:no
With approval according to UL:no
Approval according to CSA:no
Material:steel
Protection class (IP):IP68
Bending behavior:flexible

Characteristics

Inner diameter21 mm
Use in Ex areaNo
Bending radius, static115 mm
Bending behaviorFlexibel
Flame propagatingNo
HABSPLHCB25/25M
ManufacturerABB Thomas & Betts
HAN7TCA296100R0171
GTIN5020963011023
Outer diameter26.4 mm
Operating temperature1350 °C
ColorBlack
Weight0.5 kg/m
Nominal diameter25 mm
Nominal size in inches3/4 inch
SurfaceOther
IP protection)IP68
MaterialSteel
