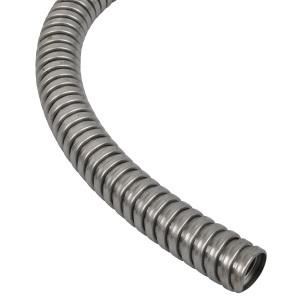

ABB Thomas & Betts SS12/25M protective hose, 7TCA296120R0008

In stock
SKU: 458303
€136.56
Into a basketIn the basketGo

Overview

SS12/25M Type SS, N size: 12, protective hose made of stainless steel, - corrosion-resistant, length: 25 meters

PropertyValue
Nominal diameter:12 mm
Surface:untreated
Sheathing material 1st layer:without sheathing
Sheathing material 2nd layer (outer):without sheathing
Approval according to DIN EN 61386-23:yes
Nominal size in inches:5/16 inches
Inner diameter:10.3 mm
Outer diameter:13 mm
Seal:without seal
Compressive strength:1250 N
Operating temperature:3500 °C
Tensile strength:1000 N
Bending radius, static:30 mm
Weight:0.1 kg/m
Color:metallic
Hanging load:850 N
Electrical properties:not clarified
Flame propagating:no
Use in Ex areas:no
Approval according to BWB:no
Approval according to VDE-EMV/emc:no
Approval according to FI:no
With approval according to UL:no
Approval according to CSA:no
Material:stainless steel
Protection class (IP):IP40
Bending behavior:flexible

Characteristics

Inner diameter10.3 mm
Use in Ex areaNo
Bending radius, static30 mm
Bending behaviorFlexibel
Flame propagatingNo
HABSS12/25M
ManufacturerABB Thomas & Betts
HAN7TCA296120R0008
GTIN5020963005855
Outer diameter13 mm
Operating temperature3500°C
Weight0.1 kg/m
Nominal diameter12 mm
Nominal size in inches5/16 inch
SurfaceUntreated
IP protection)IP40
MaterialStainless steel
