ABB Thomas & Betts SS16/25M protective hose, 7TCA296120R0014

In stock

SKU: 458305

Price on request

€320.92

€0

Overview

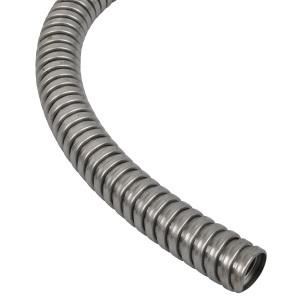

SS16/25M Type SS, N size: 16, protective hose made of stainless steel, - corrosion-resistant, length: 25 meters

Property	Value
Nominal diameter:	16 mm
Surface:	untreated
Sheathing material 1st layer:	without sheathing
Sheathing material 2nd layer (outer):	without sheathing
Approval according to DIN EN 61386-23:	yes
Nominal size in inches:	3/8 inch
Inner diameter:	13 mm
Outer diameter:	16 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	3500 °C
Tensile strength:	1000 N
Bending radius, static:	35 mm
Weight:	0.2 kg/m
Color:	metallic
Hanging load:	850 N
Electrical properties:	not clarified
Flame propagating:	no
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	stainless steel
Protection class (IP):	IP40
Bending behavior:	flexible
