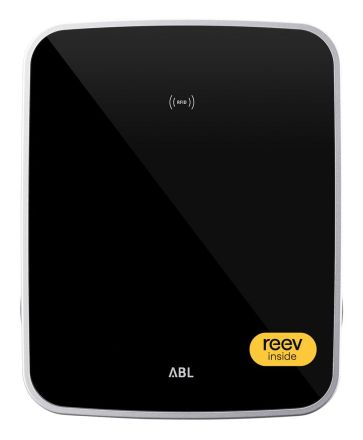

ABL Sursum 3W2253B eMH3 2x11kW 32A/400V 3ph 2xTyp2 emon. B. charging station, KFW eligible

In stock
SKU: 517418
€3,946.80
Into a basketIn the basketGo

Overview

The Wallbox eMH3, which complies with legal metrology regulations, has two internal Type 2 charging sockets. Since it can charge two vehicles at the same time and has an intelligent reev backend, it is the perfect solution for semi-public and public areas. In a group installation, up to 7 Wallboxes eMH3 Slave can be connected to a master. Alternatively, the Wallbox eMH3 can be set up for stand-alone operation using software. Thanks to the standard equipment with FI Type A and DC residual current detection, the Wallbox including backend is always pre-installed for the installer and ready for use. The Wallbox eMH3 with reev Backend Basic is Made in Germany and offers the highest safety standards.

PropertyValue
Height:492 mm
Width:400 mm
Depth:189 mm
Protection class (IP):IP44
Impact resistance:IK08
Nominal connected load:22 kW
Max. Output per charging point:22 kW
System side connection design:3-phase
Mounting type:Wall mounting
Housing material:Plastic
Number of charging points:2
Number of type 2 charging sockets:2
Number of type A residual current devices:2
Access control function:yes
With energy meter:yes
With house connection box (HAK) :no
With Communication interface:yes
With load management:yes
With circuit breaker:no

Characteristics

HABEMH3 2x11kW 32A/400V 3ph 2xType2 emon. B.
ManufacturerABL Sursum
HAN3W2253B
GTIN4011721180854
Width400 mm
Height492 mm
Mounting typeWall mounting
Impact resistanceIK08
Depth189 mm
Housing materialPlastic
ABL Sursum 3W2253B eMH3 2x11kW 32A/400V 3ph 2xTyp2 emon. B. charging station, KFW eligible
