ABN 108PLE 3x3 row UP tray ESPRO flat distributor UP/HW T: 110mm (UL33X)

In stock
SKU: 778029
€268.08
Into a basketIn the basketGo

Overview

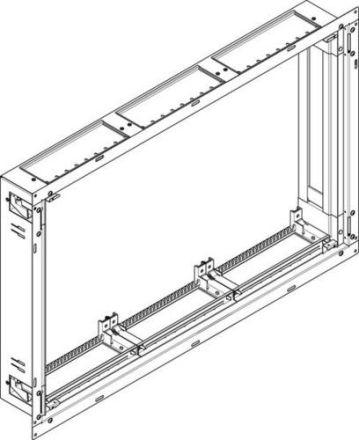

Field distributor, height 3, flush-mounted/HW empty housing. Width 3. PLE 108. UL..X series in modular delivery form with: . flush-mounted/HW empty housing without cover frame/door, optionally . cover frame with solid door, cover frame with glazed door, cover frame with door including ventilation slots, cover frame with door including ventilation slots and plastic insert for WLAN.. Housing is prepared for the installation of modular complete fields.. UL..X series. Empty housing (flush-mounted/HW tray), without cover frame, without door. Prepared for the installation of complete fields or for . continuous mounting plates. Select the desired cover frame with door.

PropertyValue
Width in division units:36
Number of rows:9
Height:550 mm
Width:800 mm
Depth:110 mm
Protection class (IP):IP30
Color:white
Mounting type:Flush-mounted
With lock:no
Transparent cover/door:no
Housing material:steel
RAL number:9016
DIN rail:no
Mounting option:yes
Installation depth:110 mm
EMC version:no
With mounting plate:no
Type of cover:without
Inner depth:80 mm
Type of closure:other

Characteristics

HABUL33X 108PLE 3x3 row UP tray
ManufacturerABN
HANUL33X
GTIN4015153468924
Cultivation optionYes
Number of rows9
Type of coverWithout
Type of closureOther
Width800 mm
Width in pitch units36
DIN railNo
EMC versionNo
Installation depth110 mm
ColorWhite
Height550 mm
Internal depth80 mm
With mounting plateNo
With lockNo
Mounting typeFlush-mounted
RAL number9016
IP protection)IP30
Depth110 mm
Transparent lid/doorNo
Housing materialSteel
ABN 108PLE 3x3 row UP tray ESPRO flat distributor UP/HW T: 110mm (UL33X)
ABN 108PLE 3x3 row UP tray ESPRO flat distributor UP/HW T: 110mm (UL33X)
