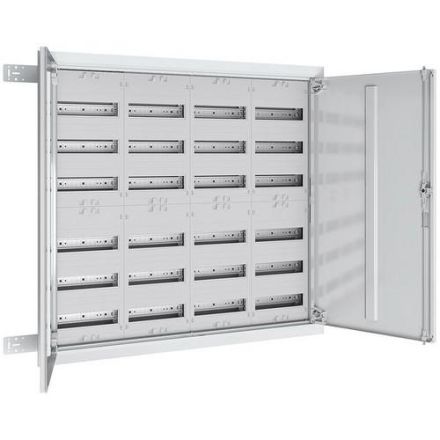

ABN 288TE 4x6 rows for REG ESPRO flat distributor UP/HW T: 110mm (UK46)

In stock
SKU: 777697
€804.67
Into a basketIn the basketGo

Overview

Field distributor, height 6, UK series.. as a complete cabinet with: UP/HW empty housing, cover frame with solid door and. Distribution field for series-mounted devices, with PE/N plug-in terminals.. Cover frame W x H x D (mm) 1100 x 1000 x 20. Cut-out dimensions W x H x D (mm) 1070 x 970 x 110. Width 4. PLE 288. Field distributor, height 6.

PropertyValue
Mounting type:other
Number of rows:20
Width in division units:48
Type of cover:door
Cover design:closed
Transparent cover/door:no
Housing material:steel
Height:970
Width:1070
Depth:126
Installation depth:110
Inner depth:80
DIN rail:yes
With mounting plate:yes
Mounting option:yes
EMC version:no
Color:white
RAL number:9016
Protection class (IP) :IP30
With Lock:no
Type of locking:other

Characteristics

HABUK46 288TE 4x6 row for REG
ManufacturerABN
HANUK46
GTIN4015153468900
Cultivation optionYes
Number of rows20
Type of coverDoor
Type of closureOther
Cover designClosed
Width1070
Width in pitch units48
DIN railYes
EMC versionNo
Installation depth110
ColorWhite
Height970
Internal depth80
With mounting plateYes
With lockNo
Mounting typeOther
RAL number9016
Depth126
Transparent lid/doorNo
Housing materialSteel
ABN 288TE 4x6 rows for REG ESPRO flat distributor UP/HW T: 110mm (UK46)
ABN 288TE 4x6 rows for REG ESPRO flat distributor UP/HW T: 110mm (UK46)
€804.67
