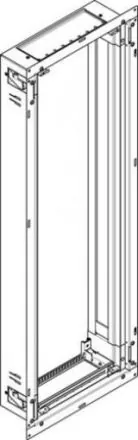

Field distributor, height 6, flush-mounted/HW empty housing. Width 1. PLE 72. UL..X series in modular delivery form with: . flush-mounted/HW empty housing without cover frame/door, optionally cover frame with solid door, cover frame with glazed door, cover frame with door including ventilation slots, cover frame with door including ventilation slots and . plastic insert for WLAN.. Housing is prepared for the installation of modular complete fields. UL..X series. Empty housing (flush-mounted/HW tray), without cover frame, without door. Prepared for the installation of complete fields or for . continuous mounting plates. Select the desired cover frame with door.
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 6 |
| Height: | 1000 mm |
| Width: | 300 mm |
| Depth: | 110 mm |
| Protection class (IP): | IP30 |
| Color: | white |
| Mounting type: | Flush-mounted |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | steel |
| RAL number: | 9016 |
| DIN rail: | no |
| Mounting option: | yes |
| Installation depth: | 110 mm |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | without |
| Inner depth: | 80 mm |
| Type of closure: | other |
