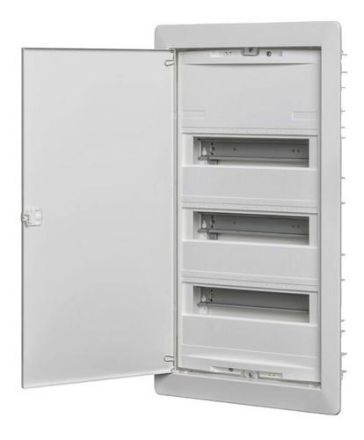

Hollow-wall small distributor with plug-in terminals, PE 6 x 2.5-16 + 21 x 1.5-4mm², N + N 2 x (3 x 2.5-16 + 14 x 1.4-4mm²), additional N-FI terminal 3 x 16, 2 x 10mm², cover frame W x H x D (mm) 344 x 624 x 11, cut-out dimensions W x H x D (mm) 310 x 570 x 88, TE each 18mm 36/42, rows 3, hollow-wall small distributor, protective insulation II, protection class: IP 30, for devices up to 63A, color: RAL 9016, traffic white, easy door stop change without dismantling the cover frame, flat door lock with snap technology, easy to replace with a lock, suitable for built-in devices up to 70mm Depth,Built according to DIN0603-1,DIN 43871,Wall boxMade of plastic,with device support railMade of sheet steel,Depth 88/90mm,N/PE plug-in terminals,finger-safe with easy-to-install snap-on technology,N-FI extension terminal,included as standard for 2-, 3- and 4-row distributors for side snap-on fastening,Device cover with device cut-outs,H = 46mm,for 12 TE,(symmetrically expandableTo 14 TE),Sealable,2-point fastening,Frame with solid doorMade of sheet steel,Circuit labels and sheet with pictograms,Plaster protection plate,
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 3 |
| Height: | 624 mm |
| Width: | 344 mm |
| Depth: | 99 mm |
| Protection class (IP): | IP30 |
| Color: | white |
| Mounting type: | Hollow wall |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | Plastic |
| RAL number: | 9016 |
| DIN rail: | yes |
| Mounting option: | no |
| Installation depth: | 90 mm |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | without |
| Cover design: | with cutout |
| Inner depth: | 76 mm |
| Type of Closure: | other |
