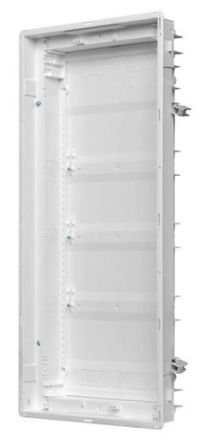

Wall box HW, cut-out dimensions WxHxD (mm) 310 x695 x88, TE each 18mm 48, rows 4, wall box, protectively insulated II, protection class: IP30, for devices up to 63A, easy door stop change without dismantling the frame, flat door lock with snap technology, easy to replace with a lock, suitable for built-in devices up to 70mm deep, colour: RAL 9016 (traffic white), built according to DIN0603-1, DIN 43871, wall box:, wall box made of plastic, fastening hooks (HW), nail tabs (UP), plaster protection plate, installation set:, support frame with device support rail, device cover, frame with solid door and plaster compensation, N/PE plug-in terminals, N-FI extension terminal (in 2-, 3- and 4-row distributor), circuit labels and sheet with pictograms,
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 4 |
| Height: | 749 mm |
| Width: | 344 mm |
| Depth: | 99 mm |
| Protection class (IP): | IP30 |
| Color: | white |
| Mounting type: | Hollow wall |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | Plastic |
| RAL number: | 9016 |
| DIN rail: | no |
| Mounting option: | no |
| Installation depth: | 90 mm |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | without |
| Cover design: | with cutout |
| Inner depth: | 76 mm |
| Type of Closure: | other |
