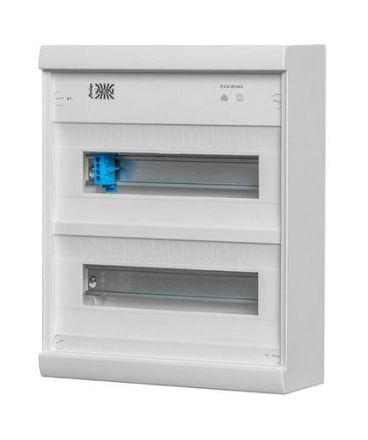

ABN Amigo W=300.H=370.D=106mm KV small distributor (A24A)

In stock
SKU: 779355
€38.17
Into a basketIn the basketGo

Overview

Surface-mounted small distributor, without door, with plug-in terminals. N+PE each 3 x 2.5 - 16 + 14 x 1.5 - 4 mm. Additional N-FI terminal 3 x 16, 2 x 10 mm. Dimensions W x H x D (mm) 300 x 370 x 106. TE each 18 mm 24/28. Rows 2. Surface-mounted small distributor, without door. Protection class: IP 30. For devices up to 63 A. Distributor base plate made of plastic, standard with fixing for the incoming and outgoing cables and pre-knockouts for rear and side cable entries. Pre-knockouts for cable ducts. Device rows for 12 TE (can be expanded to 14 TE). Color: RAL 9016 (traffic white). Built according to DIN0603-1, DIN 43871. PE/N terminal with screws, touch-proof, with easy-to-install locking of the PE+N carrier. From 2-row version with additional FI-N terminal. For built-in devices from 51 to 68 mm. With lowered device support rail (accessory) also built-in devices up to 88 mm can be used. Solid door as optional accessory. Solid doors:. Made of sheet steel, powder-coated. Standard with door operation using flush-fitting designer handle, folds back. Door opening angle over 180°. Door can be hinged either on the right or left. Color: RAL 9016, traffic white.

PropertyValue
Width in division units:12
Number of rows:2
Height:370 mm
Width:305 mm
Depth:99 mm
Protection class (IP):IP30
Color:white
Mounting type:Surface-mounted
With lock:no
Transparent cover/door:no
Housing material:plastic
RAL number:9016
DIN rail:yes
Mounting option:no
EMC version:no
With mounting plate:no
Type of cover:without
Cover design:with cutout
Inner depth:76 mm
Type of closure:other

Characteristics

HABAmigo A24A W=300.H=370.D=106mm KV
ManufacturerABN
HANA24A
GTIN4015153035294
Cultivation optionNo
Number of rows2
Type of coverWithout
Type of closureOther
Cover designWith cutout
Width305 mm
Width in pitch units12
DIN railYes
EMC versionNo
ColorWhite
Height370 mm
Internal depth76 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
RAL number9016
IP protection)IP30
Depth99 mm
Transparent lid/doorNo
Housing materialPlastic
