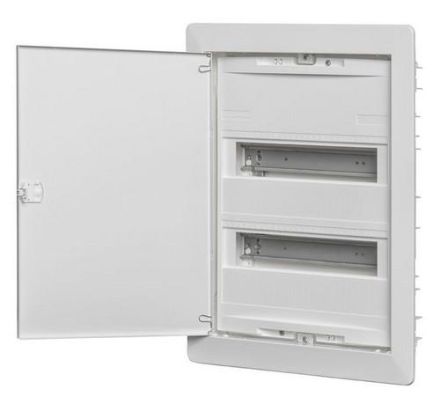

ABN Amigo with solid door WxHxD: 310x420x88mm small distributor (A24HW)

In stock
SKU: 779357
€58.42
Into a basketIn the basketGo

Overview

Hollow-wall small distributor with plug-in terminals. N+PE each 3 x 2.5 - 16 + 14 x 1.5 - 4 mm. Additional N-FI terminal 3 x 16, 2 x 10 mm. Cover frame W x H x D (mm) 344 x 474 x 11. Cut-out dimensions W x H x D (mm) 310 x 420 x 88. TE each 18 mm 24/28. Rows 2. Hollow-wall small distributor. Protectively insulated II. Protection class: IP 30. For devices up to 63 A. Color: RAL 9016, traffic white. Very easy to change the door hinge without dismantling the cover frame. Flat door lock with snap technology. Easy to replace with a lock. Suitable for built-in devices up to 70 mm deep. Built according to DIN0603-1, DIN 43871. Wall box made of plastic, with device support rail made of sheet steel, depth 88/90 mm. N/PE plug-in terminals, finger-safe with easy-to-install snap-on technology. N-FI extension terminal included as standard for 2-, 3- and 4-row distributors for side snap-on fastening. Device cover with device cut-outs, H = 46 mm, for 12 TE (symmetrically expandable to 14 TE). Sealable, 2-point fastening. Cover frame with solid door made of sheet steel. Circuit labels and sheet with pictograms. Plaster protection plate.

PropertyValue
Width in division units:12
Number of rows:2
Height:474 mm
Width:344 mm
Depth:99 mm
Protection class (IP):IP30
Color:white
Mounting type:Hollow wall
With lock:no
Transparent cover/door:no
Housing material:Plastic
RAL number:9016
DIN rail:yes
Mounting option:no
Installation depth:90 mm
EMC version:no
With mounting plate:no
Type of cover:without
Cover design:with cutout
Inner depth:76 mm
Type of Closure:other

Characteristics

HABAmigo with solid door WxHxD: 310x420x88mm
ManufacturerABN
HANA24HW
GTIN4015153205932
Cultivation optionNo
Number of rows2
Type of coverWithout
Type of closureOther
Cover designWith cutout
Width344 mm
Width in pitch units12
DIN railYes
EMC versionNo
Installation depth90 mm
ColorWhite
Height474 mm
Internal depth76 mm
With mounting plateNo
With lockNo
Mounting typeCavity wall
RAL number9016
IP protection)IP30
Depth99 mm
Transparent lid/doorNo
Housing materialPlastic
ABN Amigo with solid door WxHxD: 310x420x88mm small distributor (A24HW)
ABN Amigo with solid door WxHxD: 310x420x88mm small distributor (A24HW)
