ABN eHZ 4Z 5p with terminal block 500x1050mm meter panel (Z27EE4500)

ABN eHZ 4Z 5p with terminal block 500x1050mm meter panel (Z27EE4500)

In stock

SKU: 779600

Price on request

€944.25

€0

Into a basketIn the basketGo

Overview

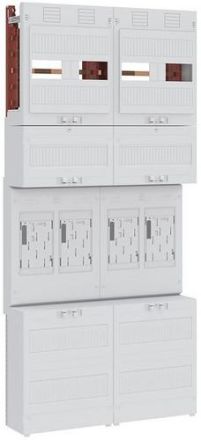

Meter panel eHZ 4Z with terminal block, 5-pole, WxH: 500x1050mm

Property	Value
Height:	1050 mm
Width:	500 mm
Width in modular units:	24
Version:	eHZ
Connection compartment:	300 mm
Number of meter spaces:	4
Number of distribution rows:	7
With wiring:	yes
With mounting plate:	no
Lower connection compartment:	with busbar 5-pole
Cover design:	closed with pre-stamping
Main switch rated current:	32 A
Color:	gray
RAL number:	7035
Protection class (IP):	IP20

Characteristics

HABEHZ 4Z 5p with terminal block 500x1050mm

Manufacturer

HANZ27EE4500

GTIN4015153727571

Connection room300 mm

Number of distribution rows7

Number of meter slots4

VersionEHZ

Cover designClosed with pre-stamping

Width500 mm

Width in pitch units24

Color

Main switch rated current32 A

Height1050 mm

With mounting plateNo

With wiringYes

RAL number7035

IP protection)IP20

Lower connection compartmentWith busbar 5-pole
