ABN S37ZZ621PVLN 1Z 1R SHS 1PV LS 40A 16qmm meter cabinet

In stock
SKU: 934063
€1,751.34
Into a basketIn the basketGo

Overview

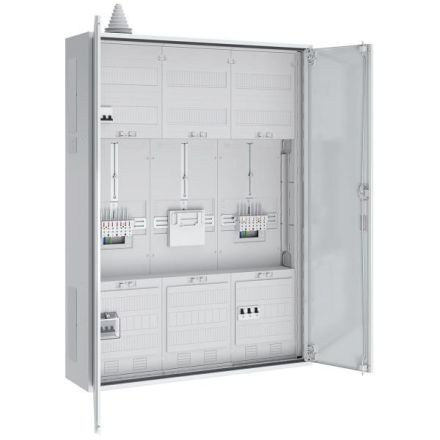

Complete cabinet consisting of: 1x 3-point meter space wired with 16 mm², selective main circuit breaker E characteristic 40 A/25 kA including meter plug-in terminal 63 A and 5-pole main line branch terminal, 1x meter reserve space, 1x 3-point fastening for surplus feed with 3x circuit breakers 1-pole C characteristic 40 A/10 kA, NAR with busbar system 5-pole and connection terminal block up to 5x35 mm², protection class IP54

PropertyValue
Number of meter spaces:3
Number of distribution rows:6
Number of fields:3
Height:1100 mm
Width:800 mm
Depth:210 mm
Protection class (IP):IP54
Design:1-storey
Lower connection compartment:with 5-pole busbar
Material:Sheet steel
With mounting plate:no
Mounting type:Surface-mounted/flush-mounted/partially recessed
Installation width:750 mm
Installation height:1050 mm
Installation depth:200 mm

Characteristics

Number of fields3
HAB1Z 1R SHS 1PV LS 40A 16qmm
ManufacturerABN
HANS37ZZ621PVLN
GTIN4015153836709
Number of distribution rows6
Number of meter slots3
Version1-storey
Width800 mm
Installation width750 mm
Installation height1050 mm
Installation depth200 mm
Height1100 mm
With mounting plateNo
Mounting typeSurface-mounted/flush-mounted/partially recessed
IP protection)IP54
Depth210 mm
Lower connection compartmentWith busbar 5-pole
MaterialSheet steel
ABN S37ZZ621PVLN 1Z 1R SHS 1PV LS 40A 16qmm meter cabinet
ABN S37ZZ621PVLN 1Z 1R SHS 1PV LS 40A 16qmm meter cabinet
€1,751.34
