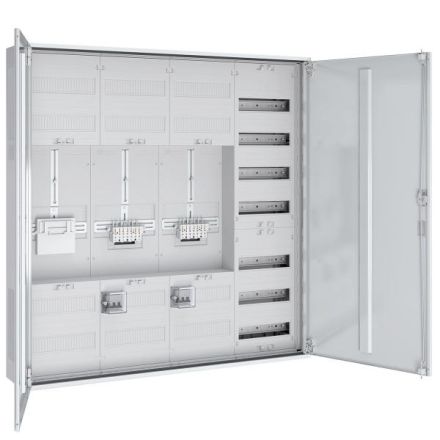

ABN S47ZR121HULN 3Pkt 1Z 1PV 1R 6x40A LUX IP54 5pol meter cabinet

In stock
SKU: 934061
€975.71
Into a basketIn the basketGo

Overview

Complete cabinet consisting of: 2x 3-point meter space wired with 10 mm², 6x circuit breaker 1-pole C characteristic 40 A/10 kA including meter plug-in terminal 63 A and 5-pole main line branch terminal, 1x meter reserve space, 1x distribution panel 7-row, NAR with top hat rail and connection terminal block up to 5x35 mm², for surplus feed-in, protection class IP54

PropertyValue
Number of meter spaces:3
Number of distribution rows:13
Number of fields:4
Height:1100 mm
Width:1050 mm
Depth:210 mm
Protection class (IP):IP54
Design:1-storey
Lower connection compartment:with top hat rails
Material:Sheet steel
With mounting plate:no
Mounting type:Surface-mounted/flush-mounted/partially recessed
Installation width:1000 mm
Installation height:1050 mm
Installation depth:200 mm

Characteristics

Number of fields4
HAB3Pkt 1Z 1PV 1R 6x40A LUX IP54 5pol
ManufacturerABN
HANS47ZR121HULN
GTIN4015153836860
Number of distribution rows13
Number of meter slots3
Version1-storey
Width1050 mm
Installation width1000 mm
Installation height1050 mm
Installation depth200 mm
Height1100 mm
With mounting plateNo
Mounting typeSurface-mounted/flush-mounted/partially recessed
IP protection)IP54
Depth210 mm
Lower connection compartmentWith DIN rails
MaterialSheet steel
