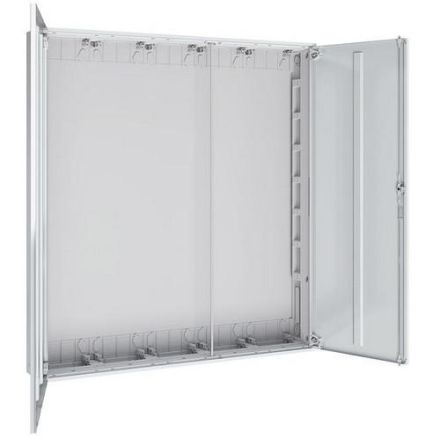

ABN protective. WxHxD: 1300x1400x210mm empty cabinet (S59)

In stock
SKU: 777596
€1,582.42
Into a basketIn the basketGo

Overview

System housing for meter box and distribution technology as a protectively insulated, low-halogen empty sheet steel housing. System PROFIKS protection class IP 43, DIN0603, DIN 43870, suitable for surface-mounted, flush-mounted and partially recessed installation. Color: white, RAL 9016 Housing can be combined. With cable entry options at the top, bottom and rear. Pre-stamped feed-through options on the side, side cable entries. Door made of sheet steel, tool-free installation, removal and adjustment of the door. Width 5, height 9, external dimensions: width: 1300 mm, height: 1400 mm, depth: 210 mm

PropertyValue
Height:1400 mm
Width:1300 mm
Depth:210 mm
Installation depth:190 mm
Inner depth:200 mm
Protection type (IP):IP43
Protection class:II
Impact resistance:IK09
Housing material:Sheet steel/plastic
RAL number:9016
Mounting type:Surface-mounted
Suitable for outdoor use:no
Surface:powder-coated
Suitable for lightning protection:yes
Mounting option:yes
With mounting plate:no
Number of cable entries:400
Number of modules:1
Number of openings for flange plates:10
Number of rows:5
Type of cover:Door
Type of door:Double
Cover design:without
Width in modular units:60
Functional integrity:without
Material thickness of housing:1.5 mm
Material thickness of door/cover:2 mm
With lock:no
Nominal current (In):400 A
Transparent Lid/door:no
Color:white
Protection class (NEMA):other

Characteristics

HABS59 protective. WxHxD: 1300x1400x210mm
ManufacturerABN
HANS59
GTIN4015153000346
Cultivation optionYes
Number of cable entries400
Number of modules1
Number of rows5
Number of openings for flange plates10
Type of coverDoor
Type of doorDouble
Cover designWithout
Width1300 mm
Width in pitch units60
Installation depth190 mm
ColorWhite
Functional preservationWithout
Suitable for outdoor useNo
Suitable for lightning protectionYes
Height1400 mm
Internal depth200 mm
Housing material thickness1.5 mm
Material thickness door/lid2 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
Nominal current (In)400A
SurfacePowder coated
RAL number9016
Impact resistanceIK09
IP protection)IP43
Protection class (NEMA)Other
Protection classII
Depth210 mm
Transparent lid/doorNo
Housing materialSheet steel/plastic
ABN protective. WxHxD: 1300x1400x210mm empty cabinet (S59)
ABN protective. WxHxD: 1300x1400x210mm empty cabinet (S59)
