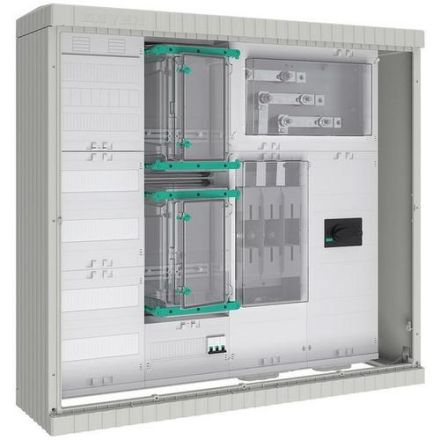

ABN SW102X0682 SIF converter cabinet 200A with APZ/without base

In stock
SKU: 1047417
€8,054.60
Into a basketIn the basketGo

Overview

consisting of: Housing, H x W x D (mm): 1005 x 1110 x 315: Glass fibre reinforced polyester FS 833.5 in accordance with DIN 16913, IP44, similar to RAL 7035, Plastic mounting plate 6 mm, Door with double locking and a profile half cylinder with 2 keys, Without base, Power section, H x W (mm): 900 x 500: Mains-side connection compartment (NAR), H x W (mm): 600 x 250, Mains-side separation point: NH1 fuse switch disconnector, 3-pole switchable, Transformer compartment, H x W (mm): 300 x 500, with transformer bracket (170 x 30 x 5 mm) in accordance with Form A in accordance with DIN0603-2-2, Hole spacing 130 mm and sealable cover with transparent cover, System-side connection compartment (AAR), H x W (mm): 600 x250,with empty space for overvoltage protection,System-side disconnection point: load-break switch,250A,3-pole,Measuring part,H xW (mm): 900 x500:APZ room: H xW (mm): 300 x250,with LexCom Home media mounting plate and device support rail,without device equipment,System-side connection room,H xW (mm): 2x300 x250,with open cover plates, cover strips and 4x device support rail,without device equipment,Transformer additional room,H xW (mm): 150 x250,with perforated 3-point cover,equipped with voltage path fuse 3xLS-Automat B 10A/25 kA and test terminal (X4) in accordance with TAB Stadtwerke Baden-Württemberg (ED Netze),Transformer meter space,H xW (mm): 375 x250,3-point with Secondary wiring and IP54 transparent cover,TRE space,H xW (mm): 375 x250,3-point with control wiring and transparent cover IP54

Characteristics

ManufacturerABN
HANSW102X0682
GTIN4015153751620
ABN SW102X0682 SIF converter cabinet 200A with APZ/without base
ABN SW102X0682 SIF converter cabinet 200A with APZ/without base
€8,054.60
