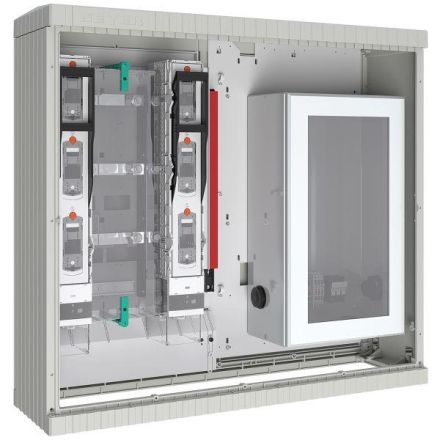

Transformer cabinet consisting of: Housing H x W x D (mm): 1005 x 1110 x 315. Glass fiber reinforced polyester FS 833.5 according to DIN 16913, IP44, similar to RAL 7035. Plastic mounting plate 6 mm. Door with double locking and a profile half cylinder with 2 keys. Without base. Power section H x W (mm): 900 x 500 consisting of: Transformer compartment, network and system-side connection compartment (NAR/AAR) substructure mounting plate (PVC 6 mm), primary copper busbars. Cu 30 x 10 mm tinned and nickel-plated, PEN busbar with V-connection terminals. 185 mm² and contact protection cover. Transformer compartment with transparent converter cover, sealable, all around. closed, including transformer lug (170 x 30 x 10 mm) in accordance with form A according to DIN0603-2-2, hole spacing 130 mm. Secondary wiring to the meter change cabinet. Mains-side disconnection point (left): NH2 fuse switch strip, 3-pole switchable, with V connection terminals 185 mm². System-side disconnection point (in the AAR): NH2 fuse switch strip, 3-pole switchable, with V connection terminals 185 mm² and 1x empty space for further NH2 fuse switch strip or empty space for overvoltage protection. Measuring part H x W x D (mm): 700 x 400 x 225 consisting of: Meter change cabinet, IP54, with transparent window in the door in accordance with TAB with connection terminal set and voltage path fuse. Without meter change plate (provided by the VNB and installed on site).
