ABN SW102X6803 SIF 250A E.Dis converter cabinet

In stock
SKU: 934143
€6,841.35
Into a basketIn the basketGo

Overview

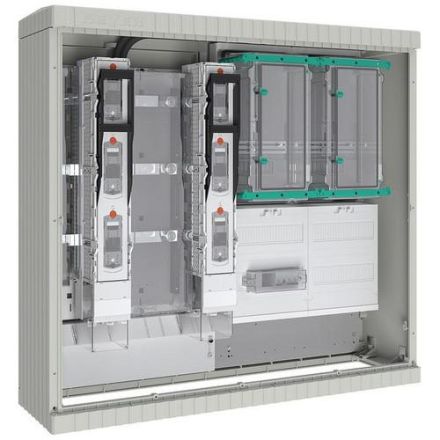

consisting of: housing, H x W x D (mm): 1005 x 1110 x 315: glass fibre reinforced polyester FS 833.5 in accordance with DIN 16913, IP44, similar to RAL 7035, plastic mounting plate 6mm, door with double locking and a profile half cylinder with 2 keys, without base, power section, H x W (mm): 900 x 500: converter compartment, network and system-side connection compartment (NAR/AAR): substructure mounting plate (PVC 6mm), primary copper rails Cu 30 x 10mm tinned and nickel-plated, PEN rail with V-connection terminals 185mm² and contact protection cover, converter compartment with transparent converter cover, sealable, closed all around, including converter tab (170 x 30 x 10mm) in accordance with Form A in accordance with DIN0603-2-2, hole spacing 130mm and secondary wiring, including empty space for overvoltage protection, mains-side disconnection point (left): NH2 fuse switch strip, 3-pole switchable, with V connection terminals 185mm² and 1x empty space for further NH2 fuse switch strip (parallel feed) or overvoltage protection, system-side disconnection point (in the AAR): NH2 fuse switch strip, 3-pole switchable, measuring part, H x W (mm): 750 x 500mm: additional transformer compartment, H x W (mm): 300 x 250, with closed 3-point cover (300 x 250mm), equipped with voltage path fuse 4xLS-Automat B 10A/25 kA (TRE and meter) under a sealable transparent cover and with 14-pole test terminal (X14) in accordance with TAB North,Transformer meter space,H xW (mm): 450 x250,3-point with secondary wiring and IP54 transparent cover,TRE space,H xW (mm): 450 x250,3-point with control wiring in accordance with TAB and IP54 transparent cover,Network-side connection area (NAR),H xW (mm): 300 x250,with perforated 3-point cover and device mounting rail,without device assembly

PropertyValue
Height:1032 mm
Width:1110 mm
Depth:315.3 mm
Installation depth:233 mm
Inner depth:208 mm
Protection type (IP):IP44
Protection class:II
Impact resistance:other
Housing material:Plastic
RAL number:7035
Mounting type:Ground base
Suitable for outdoor use:yes
Surface:untreated
Suitable for lightning protection:yes
Mounting option:yes
With mounting plate:yes
Number of cable entries:40
Number of modules:2
Type of cover:door
Type of Door:Single
Cover design:closed
Width in modular units:12
Functional integrity:without
Material thickness housing:9 mm
Material thickness door/cover:9 mm
With lock:yes
Rated current (In):250 A
Transparent cover/door:no
Color:gray
Protection class (NEMA):other

Characteristics

HABSIF 250A E.Dis
ManufacturerABN
HANSW102X6803
GTIN4015153744431
Cultivation optionYes
Number of cable entries40
Number of modules2
Type of coverDoor
Type of doorSingles
Cover designClosed
Width1110 mm
Width in pitch units12
Installation depth233 mm
ColorGray
Functional preservationWithout
Suitable for outdoor useYes
Suitable for lightning protectionYes
Height1032 mm
Internal depth208 mm
Housing material thickness9 mm
Material thickness door/lid9 mm
With mounting plateYes
With lockYes
Mounting typeBurial base
Nominal current (In)250A
SurfaceUntreated
RAL number7035
Impact resistanceOther
IP protection)IP44
Protection class (NEMA)Other
Protection classII
Depth315.3 mm
Transparent lid/doorNo
Housing materialPlastic
