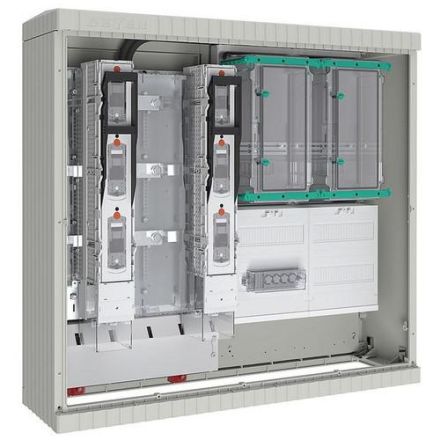

ABN SW102X6953 SIF converter cabinet 250A SH Netz AG

In stock
SKU: 1047405
€8,224.80
Into a basketIn the basketGo

Overview

consisting of: housing, H x W x D (mm): 1005 x 1110 x 315: glass fibre reinforced polyester FS 833.5 in accordance with DIN 16913, IP44, similar to RAL 7035, plastic mounting plate 6mm, door with double locking and a profile half cylinder with 2 keys, without base, power section, H x W (mm): 900 x 500: converter compartment, network and system-side connection compartment (NAR/AAR): substructure mounting plate (PVC 6mm), primary copper rails Cu 30 x 10mm tinned and nickel-plated, PEN rail with V-connection terminals 185mm² and contact protection cover, converter compartment with transparent converter cover, sealable, closed all around, including converter lug (170 x 40 x 10mm) in accordance with Form A in accordance with DIN0603-2-2, hole spacing 130mm and secondary wiring, including empty space for overvoltage protection, mains-side disconnection point (left): NH2 fuse switch strip, 3-pole switchable, with V connection terminals 185mm² and 1x empty space for further NH2 fuse switch strip (parallel feed) or overvoltage protection, system-side disconnection point (in the AAR): NH2 fuse switch strip, 3-pole switchable, measuring part, H x W (mm): 900 x 500: additional transformer compartment, H x W (mm): 300 x 250, with closed 3-point cover (300 x 250mm), equipped with voltage path fuse D01 3-pole and D01 1-pole (TRE) (including screw caps) under a sealable transparent cover and with 14-pole test terminal (X14) in accordance with TAB North, converter meter space, H x W (mm): 450 x 250, 3-point with secondary wiring and IP54 transparent cover, TRE space, H x W (mm): 450 x 250, 3-point with control wiring in accordance with TAB and IP54 transparent cover, mains-side connection space, H x W (mm): 300 x 250, with perforated 3-point cover and device support rail, without device assembly

Characteristics

ManufacturerABN
HANSW102X6953
GTIN4015153752696
ABN SW102X6953 SIF converter cabinet 250A SH Netz AG
ABN SW102X6953 SIF converter cabinet 250A SH Netz AG
€8,224.80
