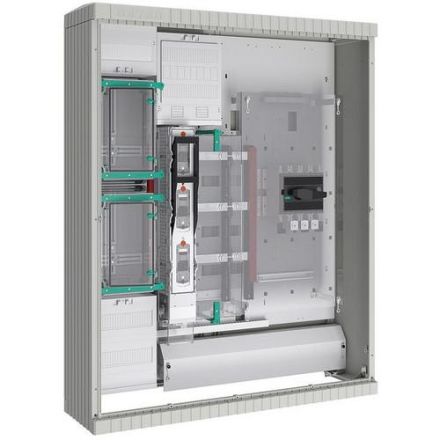

consisting of: Housing, H x W x D (mm): 1355 x 1110 x 315: Glass fiber reinforced polyester FS 833.5 according to DIN 16913, IP44, similar to RAL 7035, Plastic mounting plate 6mm, Door with double locking and a profile half cylinder with 2 keys, Without base, Power section, H x W (mm): 1200 x 750: Mains-side connection compartment (NAR), H x W (mm): 600 x 250, Transformer compartment, mains and system-side connection compartment (NAR/AAR): Primary copper bars Cu 30 x 10mm tinned and nickel-plated, PEN bar with V-connection terminals 185mm² and touch protection cover, Mains-side separation point (left): NH2 fuse switch strip, 3-pole switchable, Transformer compartment with transparent transformer cover, sealable, all around closed, including transformer lug (170 x 30 x 10 mm) in accordance with Form A according to DIN0603-2-2, hole spacing 130 mm and secondary wiring, including empty space for overvoltage protection, system-side connection compartment (AAR), H x W (mm): 1200 x 450, with PEN rail with V-connection terminals 185 mm² and empty space for overvoltage protection, system-side separation point: load-break switch, 400 A, 3-pole, measuring part, H x W (mm): 1200 x 250: additional transformer compartment, H x W (mm): 300 x 250, with perforated 3-point cover, equipped with voltage path fuse 3xLS-Automat B 10 A/25 kA and test terminal (X4) in accordance with TAB Netze BW, transformer meter space: H x W (mm): 375 x250,3-point with secondary wiring (H07V-K 2.5mm² current/1.5mm² voltage according to 0603-2-2),TRE space,H xW (mm): 375 x250,3-point,wired (control wires H07V-K 1.5mm² 0603-2-2),System-side connection space (AAR, via TRE),H xW (mm): 150 x250,with open 3-point cover,cover strip and device support rail,without device assembly,APZ space,H xW (mm): 300 x250,with LexCom Home media mounting plate and device support rail,without device assembly
| Property | Value |
| Height: | 1382 mm |
| Width: | 1110 mm |
| Depth: | 316 mm |
| Installation depth: | 233 mm |
| Inner depth: | 208 mm |
| Protection type (IP): | IP44 |
| Protection class: | II |
| Impact resistance: | other |
| Housing material: | plastic |
| RAL number: | 7035 |
| Mounting type: | Ground base |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | yes |
| Number of cable entries: | 40 |
| Number of modules: | 2 |
| Type of cover: | Door |
| Type of door: | Single |
| Version Cover: | closed |
| Width in modular units: | 12 |
| Functional integrity: | without |
| Material thickness housing: | 9 mm |
| Material thickness door/cover: | 9 mm |
| With lock: | yes |
| Rated current (In): | 250 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
