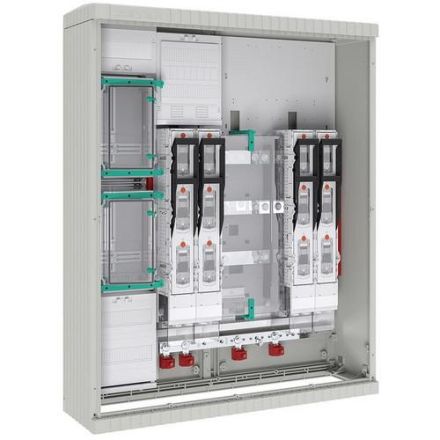

ABN SW132X0686 SIF 430A TAB Netze BW 2x2xNH2-Abg. converter cabinet

consisting of: Housing, H x W x D (mm): 1355 x 1110 x 315: Glass fibre reinforced polyester FS 833.5 in accordance with DIN 16913, IP44, similar to RAL 7035, Plastic mounting plate 6mm, Door with double locking and a profile half cylinder with 2 keys, Without base, Measuring part, H x W (mm): 1200 x 250: Transformer additional compartment, H x W (mm): 300 x 250, with perforated 3-point cover, equipped with voltage path fuse 3xLS-Automat B 10A/25 kA and test terminal (X4) in accordance with TAB Netze BW, Transformer meter space, H x W (mm): 375 x 250, 3-point with secondary wiring and IP54 transparent cover, TRE space, H x W (mm): 375 x250, 3-point, wired and IP54 transparent cover, system-side connection compartment (AAR, via TRE), H x W (mm): 150 x250, with perforated 3-point cover and device support rail, APZ compartment, H x W (mm): 300 x250, with LexCom Home media mounting plate and device support rail, without device equipment, power section, H x W (mm): 1200 x750: Transformer compartment, network and system-side connection compartment (NAR/AAR): primary copper rails Cu 40/30 x10mm (L1-L3/PEN) tinned and nickel-plated, PEN rail with 4xV connection terminals 185mm², prepared for contact protection cover on PEN rail, transformer compartment with transparent transformer cover, sealable, closed all around, including transformer tab (250 x 50 x 12 mm) according to form B according to DIN0603-2-2, hole spacing 130 mm and 210 mm and secondary wiring, mains-side disconnection point (left): 2 x NH2 fuse switch strip, 3-pole switchable, with V-connection terminals 185 mm², system-side disconnection point (in the AAR): 2 x NH2 fuse switch strip, 3-pole switchable, with V-connection terminals 185 mm², 1 x empty space prepared for overvoltage protection
