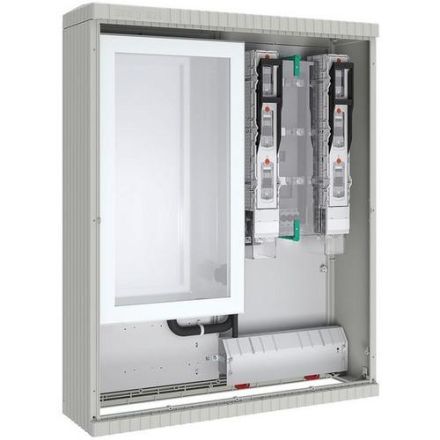

consisting of: housing, H x W x D (mm): 1355 x 1110 x 315: glass fibre reinforced polyester FS 833.5 in accordance with DIN 16913, IP44, similar to RAL 7035, plastic mounting plate 6mm, door with double locking and a profile half cylinder with 2 keys, without base, power section, H x W (mm): 900 x 500: converter compartment, network and system-side connection compartment (NAR/AAR): primary copper busbars Cu 30 x 10mm tinned and nickel-plated, PEN busbar with V-connection terminals 185mm² and touch protection cover, converter compartment with transparent converter cover, sealable, closed all around, including converter tab (170 x 30 x 10mm) in accordance with Form A in accordance with DIN0603-2-2, hole spacing 130mm, voltage path fuse D01 3-pole (incl. screw caps) and secondary wiring to the meter change cabinet, mains-side disconnection point (left): NH2 fuse switch strip, 3-pole switchable, system-side disconnection point (in the AAR): NH2 fuse switch strip, 3-pole switchable, measuring part, H x W x D (mm): 950 x 550 x 225: meter change cabinet, IP54, with transparent panel in the door, with meter change plate in accordance with TAB, additional converter compartment with transparent cover, with test terminal in accordance with TAB, 4x meter space: 3-point with secondary wiring and control wiring in accordance with TAB
| Property | Value |
| Height: | 1382 mm |
| Width: | 1110 mm |
| Depth: | 315 mm |
| Installation depth: | 233 mm |
| Inner depth: | 208 mm |
| Protection type (IP): | IP44 |
| Protection class: | II |
| Impact resistance: | other |
| Housing material: | plastic |
| RAL number: | 7035 |
| Mounting type: | Ground base |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | yes |
| Number of cable entries: | 40 |
| Number of modules: | 2 |
| Type of cover: | Door |
| Type of door: | Single |
| Version Cover: | closed |
| Width in modular units: | 12 |
| Functional integrity: | without |
| Material thickness housing: | 9 mm |
| Material thickness door/cover: | 9 mm |
| With lock: | yes |
| Rated current (In): | 250 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
