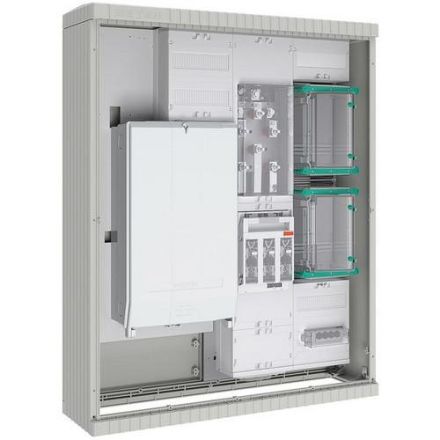

consisting of: Housing, H x W x D (mm): 1355 x 1110 x 315: Glass fibre reinforced polyester FS 833.5 in accordance with DIN 16913, IP44, similar to RAL 7035, Plastic mounting plate 6mm, Door with double locking and a profile half cylinder with 2 keys, Without base, Power section, H x W (mm): 1200 x 750: Mains-side connection compartment (NAR), H x W (mm): 1200 x 500, Mounting plate for house connection box, Mains-side separation point (in NAR): Cable house connection box NH2, Transformer compartment, H x W (mm): 450 x 250, with insulators in accordance with the Hamburg power grid (“Functional areas for semi-indirect measurements, page 9: Compact design”), Sealable cover with transparent hood, with primary wiring 150mm² On Cu connection lugs for on-site Standard transformer lug (170mm long (through SNH) according to FormA according to DIN0603-2-2, hole spacing 130mm, system-side connection area (AAR), H x W (mm): 600 x 250, with PEN rail with V connection terminals 185mm², system-side separation point: NH2 fuse switch disconnector, 3-pole switchable, measuring part, H x W (mm): 1200 x 250: additional transformer area, H x W (mm): 300 x 250, with closed 3-point cover (300 x 250mm), equipped with voltage path fuse D01 3-pole and D01 1-pole (incl. screw caps) under a sealable transparent cover, secondary wiring is looped through, without test terminal (is provided by the VNB and on site mounted), transformer meter space (bottom), H x W (mm): 375 x 250, 3-point with secondary wiring (H07V-K 2.5mm² current/1.5mm² voltage according to 0603-2-2) and IP54 transparent cover, TRE space (top), H x W (mm): 375 x 250, 3-point, wired (control wires H07V-K 1.5mm² 0603-2-2) and IP54 transparent cover, system-side connection space (AAR, above TRE), H x W (mm): 150 x 250, with perforated 3-point cover and device mounting rail, without device assembly, incl. empty space for surge protection
| Property | Value |
| Height: | 1382 mm |
| Width: | 1110 mm |
| Depth: | 315 mm |
| Installation depth: | 233 mm |
| Inner depth: | 208 mm |
| Protection type (IP): | IP44 |
| Protection class: | II |
| Impact resistance: | other |
| Housing material: | plastic |
| RAL number: | 7035 |
| Mounting type: | Ground base |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | yes |
| Number of cable entries: | 80 |
| Number of modules: | 2 |
| Type of cover: | Door |
| Type of door: | Single |
| Version Cover: | closed |
| Width in modular units: | 12 |
| Functional integrity: | without |
| Material thickness housing: | 9 mm |
| Material thickness door/cover: | 9 mm |
| With lock: | yes |
| Rated current (In): | 250 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
