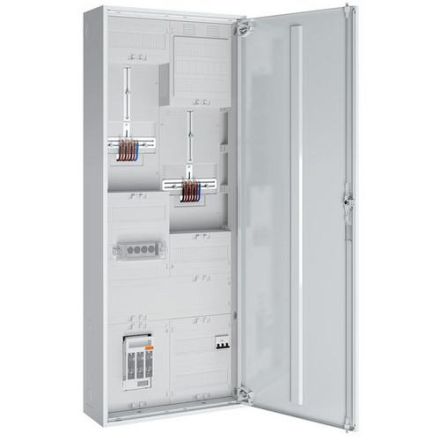

ABN WM209X5051 100A TAB MD 5-p.Zu=NH00 AB=LA 160A transformer cabinet

In stock
SKU: 934203
€2,225.18
Into a basketIn the basketGo

Overview

Transformer measuring cabinet 100A according to TAB Central Germany consisting of: Metering cabinet protectively insulated IP43, 1xNAR with 40mm busbar 2x12x5mm equipped with NH00 isolator, 5x busbar terminal 35mm², 1x converter module WxH 500x150mm with perforated plate, 1x AAR load break switch 3-pole 125A and terminal for N and PE, 1x additional converter compartment 300mm 24 TE equipped with voltage path fuses and converter isolating terminals, 1x 3-point meter compartment 450mm, 1x FRE compartment 450mm 3-point with 12 TE connection compartment 150mm, 1x APZ compartment 300mm with RJ45 interface

PropertyValue
Number of meter spaces:2
Number of distribution rows:4
Number of fields:2
Height:1400 mm
Width:550 mm
Depth:210 mm
Protection class (IP):IP43
Design:1-storey
Lower connection compartment:with 5-pole busbar
Material:Sheet steel
With mounting plate:no
Mounting type:Surface-mounted/flush-mounted/partially recessed
Installation width:500 mm
Installation height:1350 mm
Installation depth:200 mm

Characteristics

Number of fields2
HAB100A TAB MD 5-p.Zu=NH00 AB=LA 160A
ManufacturerABN
HANWM209X5051
GTIN4015153797345
Number of distribution rows4
Number of meter slots2
Version1-storey
Width550 mm
Installation width500 mm
Installation height1350 mm
Installation depth200 mm
Height1400 mm
With mounting plateNo
Mounting typeSurface-mounted/flush-mounted/partially recessed
IP protection)IP43
Depth210 mm
Lower connection compartmentWith busbar 5-pole
MaterialSheet steel
ABN WM209X5051 100A TAB MD 5-p.Zu=NH00 AB=LA 160A transformer cabinet
ABN WM209X5051 100A TAB MD 5-p.Zu=NH00 AB=LA 160A transformer cabinet
€2,225.18
Into a basketIn the basketGo
