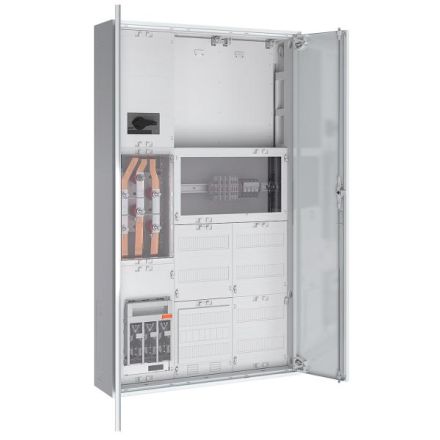

ABN WM309X2032 SIH 200A TAB Westnetz 5-pin transformer cabinet

In stock
SKU: 934408
€3,654.95
Into a basketIn the basketGo

Overview

Transformer measuring cabinet 200 A according to TAB Westnetz consisting of: Metering cabinet protectively insulated IP43, 2x NAR with 40 mm busbar 2x12x5 mm equipped with NH1 isolator, 4x busbar terminal 120 mm², 1x busbar terminal 70 mm², 1x transformer module 450 mm for transformer lugs design A with 30 mm width, 1x AAR with load disconnector 3-pole 250 A and terminal for N and PE, 2x additional transformer compartment 300 mm 24 TE equipped with voltage path fuses and transformer isolating terminals, with base plate for on-site meter exchange plate, 1x APZ compartment 300 mm with RJ45 interface

PropertyValue
Number of meter spaces:2
Number of distribution rows:2
Number of fields:3
Height:1400 mm
Width:800 mm
Depth:210 mm
Protection class (IP):IP43
Design:1-storey
Lower connection compartment:with 5-pole busbar
Material:Steel sheet
With mounting plate:yes
Mounting type:Surface-mounted
Installation width:750 mm
Installation height:1300 mm
Installation depth:200 mm

Characteristics

Number of fields3
HABSIH 200A TAB Westnetz 5-pin.
ManufacturerABN
HANWM309X2032
GTIN4015153821835
Number of distribution rows2
Number of meter slots2
Version1-storey
Width800 mm
Installation width750 mm
Installation height1300 mm
Installation depth200 mm
Height1400 mm
With mounting plateYes
Mounting typeSurface-mounted
IP protection)IP43
Depth210 mm
Lower connection compartmentWith busbar 5-pole
MaterialSheet steel
ABN WM309X2032 SIH 200A TAB Westnetz 5-pin transformer cabinet
ABN WM309X2032 SIH 200A TAB Westnetz 5-pin transformer cabinet
