ABN 1-way on DIN rail socket SCHUKO (XSD11)

ABN 1-way on DIN rail socket SCHUKO (XSD11)

In stock

SKU: 779288

Price on request

€27.63

€0

Into a basketIn the basketGo

Overview

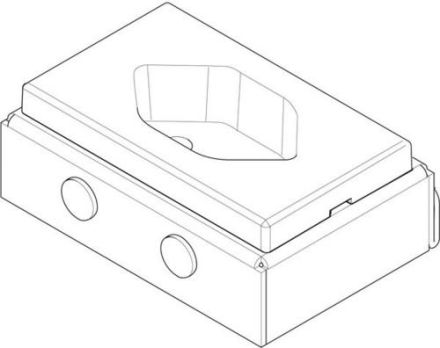

Schuko socket with cover, 1-way, on DIN rail

Property	Value
Version:	SCHUKO
RAL number (similar):	7035
Number of units:	1
Color:	gray
Suitable for protection class (IP):	IP20
Nominal voltage:	230 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With Hinged lid:	yes
Mounting type:	Built-in installation
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	no
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	other
Twisted central insert:	no
Printing/marking:	other
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	snap-on fastening
Material:	plastic
Material quality:	thermoplastic
Surface:	untreated
Surface finish:	matt
Number of modules (with modular design):	1
Device width:	45 mm
Device height:	85 mm
Device depth:	70 mm
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	other
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
Number of active contacts (flat):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	70 mm

Characteristics

HAB1-way on DIN rail

Manufacturer

HANXSD11

GTIN4015153172043

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of phases1

Number of active contacts (approx.)2

Printing/markingOther

VersionSCHUKO

Surface finishFrosted

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width45 mm

Device height85 mm

Device depth70 mm

Halogen freeNo

Insulated installationYes

Min. depth of the device box70 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeBuilt-in installation

Nominal voltage230V

Rated current16A

SurfaceUntreated

RAL number (similar)7035

Impact resistanceOther

Protective contactYes

Protective conductor contact roundNo

Special power supplyOther

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
