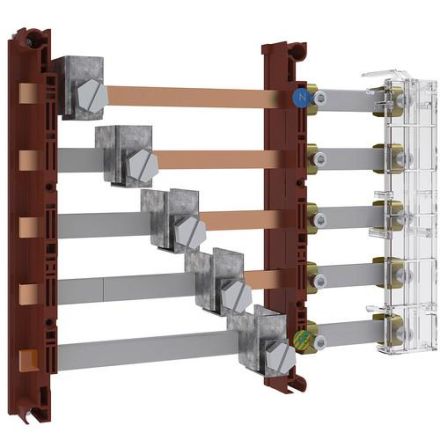

ABN GSS51EN 5-pole 250A busbar connection kit

In stock
SKU: 934376
€142.74
Into a basketIn the basketGo

Overview

Accessories consisting of: Busbar kit, 5-pole, for connection housing (GAG12), 250 A, 12 x 5 mm Cu rail, cabinet connector set for connection to the meter cabinet, contact protection covers for the busbar, 5 x connection terminals 120 mm²

PropertyValue
Rated current:250 A
Width:268 mm
Height:238 mm
Depth:80 mm
Number of poles:5
Rail spacing:40 mm
Rail height:12 mm
Rail thickness:5 mm
Short-circuit strength (Icw):25 kA
Material:Copper
Surface:blank

Characteristics

HABGSS51EN 5-pole 250A
ManufacturerABN
HANGSS51EN
GTIN4015153826861
Rated current250A
Width268 mm
Height238 mm
Short circuit strength (Icw)25kA
SurfaceBlank
Number of poles5
Depth80 mm
MaterialCopper
