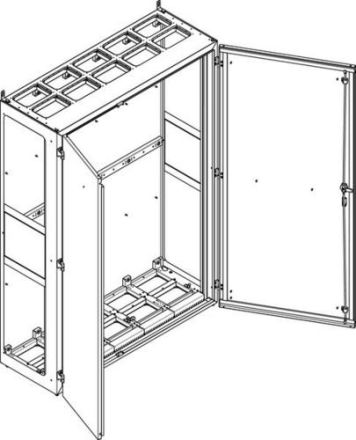

Floor-standing housing, 500mm deep, NS, EB series, earthed K, external dimensions WxHxD (mm) 1340 x1890 x500, width 5, height 12, floor-standing housing, 500mm deep, NS, EB series, protection class II (NS, PB series), protection class I (NS, EB series), protection type: IP55 (only in conjunction with cable entry plates and side panels), for devices up to 1600 A, floor-standing installation with external fastening, widths: 340, 590, 840, 1090, 1340 mm, height: 1890mm without base, depth: 500 mm, colour: RAL 9016 (traffic white), space units: 144 to 720, material: 1.5mm (doors 2mm) sheet steel, powder-coated, side on both sides open, cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate, can be combined horizontally and vertically, door surface-mounted, right or left, can be hinged with an opening angle of 180°, 3 mm double-bit lock with 3-point rod lock, prepared for the installation of standardized module kits on, NT support profiles or for continuous mounting plates incl., scaffold bracket NGTU10N2*, DIN EN 61439-1 (VDE0660 Part 600-1), * Note NGTU10N2:, scaffold brackets are included as follows:, field width 1 and 2 (340mm and 590mm)-1 set, field width 3 and 4 (840mm and 1090mm)-2 sets, field width 5 (1340mm)-3 sets,
| Property | Value |
| Height: | 1890 mm |
| Width: | 1340 mm |
| Depth: | 500 mm |
| Installation depth: | 506 mm |
| Inner depth: | 500 mm |
| Protection type (IP): | IP55 |
| Protection class: | I |
| Impact resistance: | IK10 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Floor installation |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 1 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 20 |
| Number of rows: | 5 |
| Type of cover: | Door |
| Type of door: | Double |
| Cover design: | without |
| Width in division units: | 60 |
| Functional integrity: | without |
| Material thickness housing: | 1.5 mm |
| Material thickness door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 1600 A |
| Transparent Lid/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
