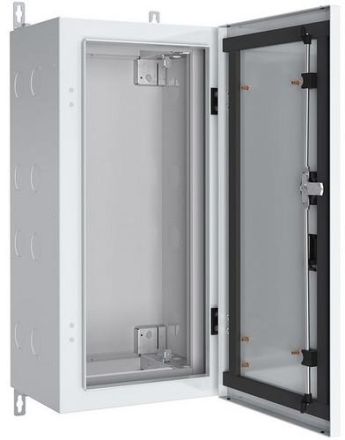

ABN WxHxD:340x690x280mm wall housing (NF14P)

In stock
SKU: 780549
€580.23
Into a basketIn the basketGo

Overview

Wall housing, 280mm deep, protective insulated Y, external dimensions WxHxD (mm) 340 x690 x280, width 1, height 4, PLE 48, wall housing, 280mm deep, protection class II (NF, P series), protection class I (NF, E series), protection type: IP55, for devices up to 630 A, wall mounting with external fastening, widths: 340, 590, 840, 1090, 1340 mm, heights: 690, 990, 1140, 1290, 1440 mm, depth: 280 mm, colour: RAL 9016 (traffic white), space units: 48 to 540, material: 1.5mm (doors 2mm) sheet steel, powder-coated, pre-punched on both sides for housing connections M6 and M50 screw connection, cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate, can be combined horizontally and vertically, door surface-mounted, right or left, can be hinged with an opening angle of 180°, 3 mm double-bit lock with 3-point rod lock, prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including, scaffold bracket NGTU10N2*, DIN EN 61439-1 (VDE0660 Part 600-1), * Note NGTU10N2:, scaffold brackets are included as follows:, field width 1 and 2 (340mm and 590mm)-1 set, field width 3 and 4 (840mm and 1090mm)-2 sets, field width 5 (1340mm)-3 sets,

PropertyValue
Height:690 mm
Width:340 mm
Depth:280 mm
Installation depth:250 mm
Inner depth:280 mm
Protection type (IP):IP55
Protection class:II
Impact resistance:IK10
Housing material:Sheet steel/plastic
RAL number:9016
Mounting type:Surface-mounted
Suitable for outdoor use:no
Surface:powder-coated
Suitable for lightning protection:yes
Mounting option:yes
With mounting plate:no
Number of cable entries:1
Number of modules:1
Number of openings for flange plates:2
Number of rows:1
Type of cover:Door
Type of door:Single
Cover design:without
Width in division units:12
Functional integrity:without
Material thickness housing:1.5 mm
Material thickness door/cover:2 mm
With lock:no
Nominal current (In):630 A
Transparent Lid/door:no
Color:white
Protection class (NEMA):other

Characteristics

HABNF14P WxHxD:340x690x280mm
ManufacturerABN
HANNF14P
GTIN4015153604421
Cultivation optionYes
Number of cable entries1
Number of modules1
Number of rows1
Number of openings for flange plates2
Type of coverDoor
Type of doorSingles
Cover designWithout
Width340 mm
Width in pitch units12
Installation depth250 mm
ColorWhite
Functional preservationWithout
Suitable for outdoor useNo
Suitable for lightning protectionYes
Height690 mm
Internal depth280 mm
Housing material thickness1.5 mm
Material thickness door/lid2 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
Nominal current (In)630A
SurfacePowder coated
RAL number9016
Impact resistanceIK10
IP protection)IP55
Protection class (NEMA)Other
Protection classII
Depth280 mm
Transparent lid/doorNo
Housing materialSheet steel/plastic
