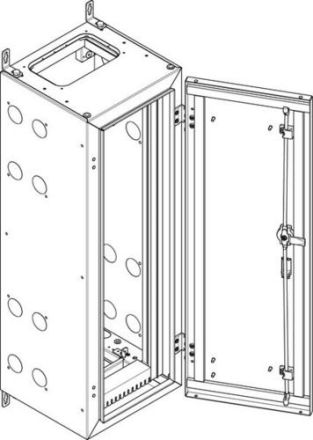

Wall housing, 340mm deep, earthed K, external dimensions WxHxD (mm) 340 x990 x340, width 1, height 6, PLE 72, wall housing, 340mm deep, protection class II (series NT, P), protection class I (series NT, E), protection type: IP55, for devices up to 630 A, wall mounting with external fastening, widths: 340, 590, 840, 1090, 1340 mm, heights: 690, 840, 990, 1140, 1290, 1440 mm, depth: 280 mm, colour: RAL 9016 (traffic white), space units: 48 to 540, material: 1.5mm (doors 2mm) sheet steel, powder-coated, pre-punched on both sides for housing connections M6 and screw connection M50, cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate, can be combined horizontally and vertically, door surface-mounted, right or left, can be hinged with an opening angle of 180°, 3mm double-bit lock with 3-point rod lock, prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including, scaffold bracket NGTU10N2*, DIN EN 61439-1 (VDE0660 Part 600-1), * Note NGTU10N2:, scaffold brackets are included as follows:, field width 1 and 2 (340mm and 590mm)-1 set, field width 3 and 4 (840mm and 1090mm)-2 sets, field width 5 (1340mm)-3 sets,
| Property | Value |
| Height: | 990 mm |
| Width: | 340 mm |
| Depth: | 340 mm |
| Installation depth: | 305 mm |
| Inner depth: | 340 mm |
| Protection type (IP): | IP55 |
| Protection class: | I |
| Impact resistance: | IK10 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 1 |
| Number of openings for flange plates: | 2 |
| Number of rows: | 1 |
| Type of the cover: | door |
| Type of door: | single |
| Cover design: | without |
| Width in division units: | 12 |
| Functional integrity: | without |
| Material thickness of housing: | 1.5 mm |
| Material thickness of door/cover: | 2 mm |
| With lock: | no |
| Rated current (In): | 1200 A |
| Transparent cover/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
