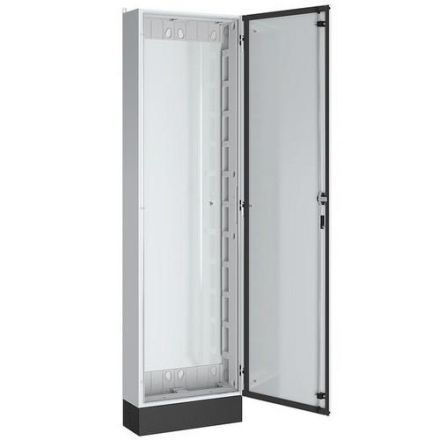

Floor-standing housing, 225 mm deep, SE series, earthed K. External dimensions W x H x D (mm) 550 x 1980 x 225. Width 2. Height 12. PLE 288. Floor-standing housing, 225 mm deep, SE series. Protection class II (SP series), protection class I (SE series). Protection type: IP54. For devices up to 630 A. Floor-standing installation with external fastening. Widths: 300, 550, 800, 1050, 1300 mm. Height: 1980 mm, including 130 mm base, assembled. Depth: 225 mm. Color: RAL 9016 (traffic white). Space units: 144 to 720. Material: 1.5 mm (doors 2 mm) sheet steel, powder-coated. Pre-punched on both sides for M6 housing connections. Cable entries 2K membrane flange 35x at the bottom, 35x at the top per field. Can be combined horizontally and vertically. Door surface-mounted, can be hinged on the right or left with an opening angle of 270°, 3mm double-bit lock with 3-point rod lock. Prepared for the installation of standardized module kits on NT support profiles or for continuous mounting plates. DIN EN 61439-1 (VDE0660 Part 600-1).
